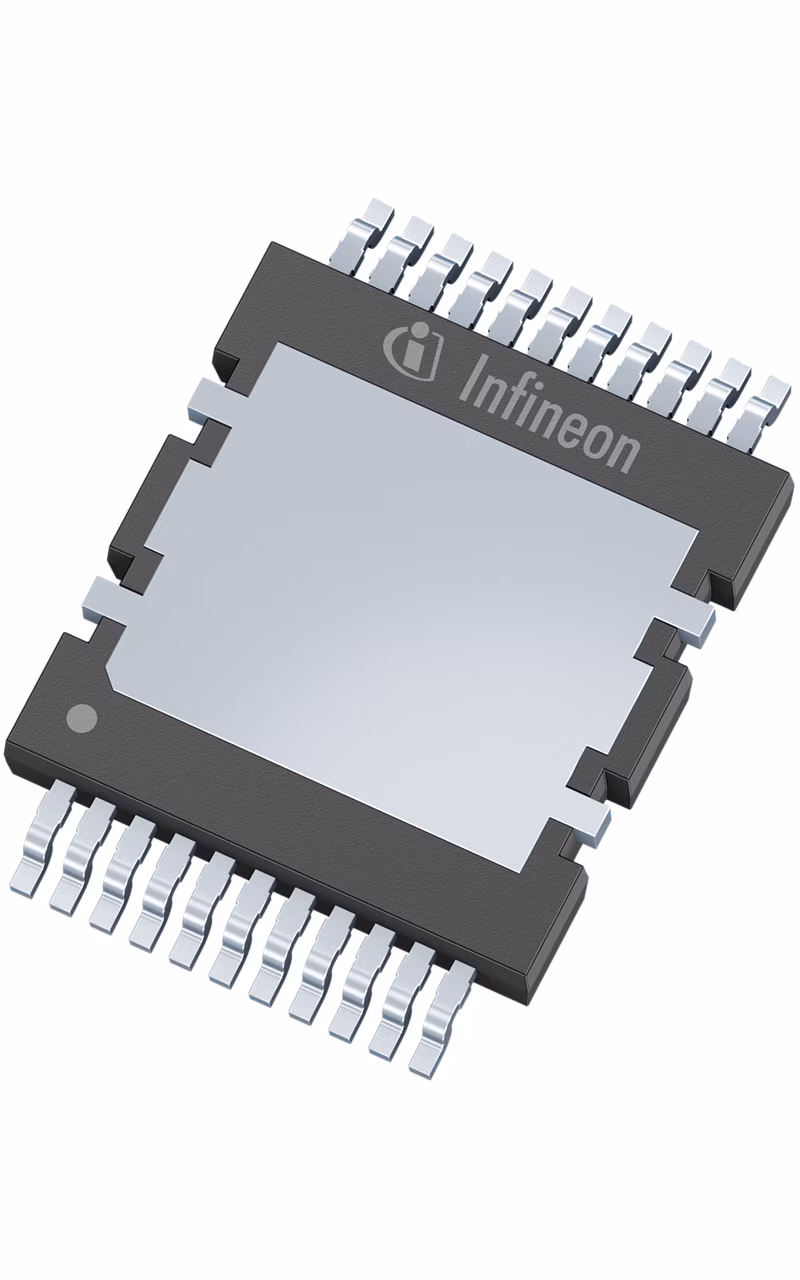

IPDQ60R010S7A
  • IPDQ60R010S7A

IPDQ60R010S7A

Active and preferred

The automotive qualified AEC-Q101, 600 V CoolMOS™ S7A SJ MOSFET family is optimized to offer low conduction losses and features the lowest RDS(on) in the market when it comes to high-voltage SJ MOSFETs. It comes with an unprecedented RDS(on) x price figure of merit and is a perfect fit for HV eFuse, HV eDisconnect and on-board charger PFC stage in an active line configuration.

Infineon Technologies IPDQ60R010S7A Product Info

16 April 2026 0

Parameters

ID max

50 A

ID (@25°C) max

50 A

IDpuls max

801 A

Mounting

SMT

Operating Temperature range

-40 °C to 150 °C

Package

Q-DPAK

Polarity

N

Ptot max

694 W

QG

318 nC

QG (typ @10V) max

318 nC

Qualification

Automotive

RDS (on) (@ Tj = 25°C) max

10 mΩ

RDS (on) (@ Tj = 25°C)

9 mΩ

Special Features

Slow switching

Technology

CoolMOS™ S7A

VDS max

600 V

VGS(th) range

3.5 V to 4.5 V

VGS(th)

4 V

Apps

Automotive battery management system (BMS) - 48 V, EV traction inverter, On-board charging (OBC)

Features

  • CoolMOS™ 7 series
  • improved Ron * A

Description

  • enables static switch applications
  • Ron trimmed technology
  • MOSFET suits hard & resonant topologies
  • Enables high power density
  • Enables better control
  • Enables perfect electrical loops
  • Enables perfect electrical loops
