TLE9188QVW
  • TLE9188QVW

TLE9188QVW

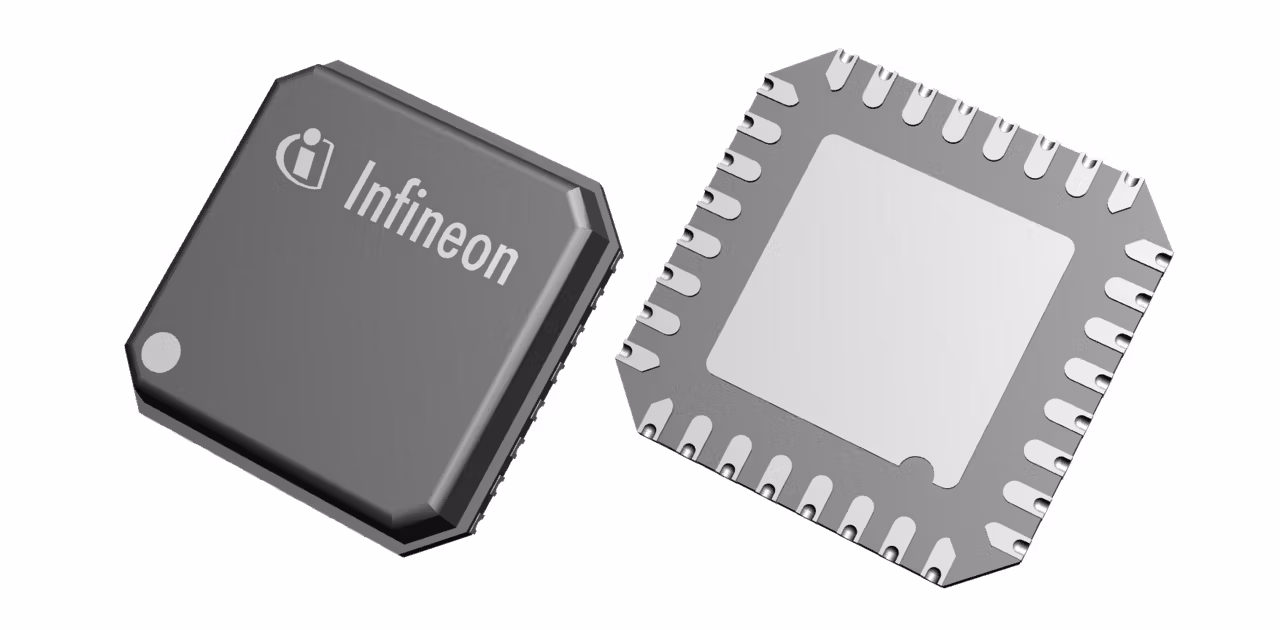

MOTIX™ TLE9188QVW gate driver IC for BLDC motors is uniquely positioned with an innovative digital motor control concept, which uses an integrated digital timer unit for PWM generation and three 12-bit ADCs for accurate current shunt measurement. This digital motor control concept allows the device to be designed in a VQFN-32 package. This device has a supply voltage range from 4V to 36V, which is optimized for automotive 12V battery systems.

Infineon Technologies TLE9188QVW Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-compliant (ASIL D)

Configuration

3-phase

Control Interface

2x 32-bits SPI or 1x 64-bits SPI

Current Sense Amplifier

3x ADCs

Driving Capability

250 nC at 20 kHz

Family

MOTIX™ gate driver ICs for BLDC motors

Qualification

Automotive

Supply Voltage range

4 V to 36 V

Temperature range

-40 °C to 175 °C

Features

  • Drives 6 MOSFETs, Qgtotal=250nC/MOSFET
  • Supply voltage range of 4 V to 36 V
  • 0...100% duty cycle
  • Motor pins rated -15 V for transients
  • Integrated timer unit for PWM generation
  • 3x 12-bit ADCs for current measurement
  • Passive clamping of external FETs
  • Diverse monitoring, diagnostic functions
  • Device monit. (over temp., current,...)
  • Inverter monit. (over-, under,..)
  • MCU & interface: SPI CRC, BISTs,..

Description

  • Integrated Sigma-Delta ADC
  • Digital signal transfer to µC in 8/12bit
  • Operational down to 4 V supply
  • Extended temperature range AEC Q100
  • ISO 26262-compliant (ASIL D)
  • Tiny package: VQFN-32 (5x5mm2)
