IPA320N20NM3S
  • IPA320N20NM3S

IPA320N20NM3S

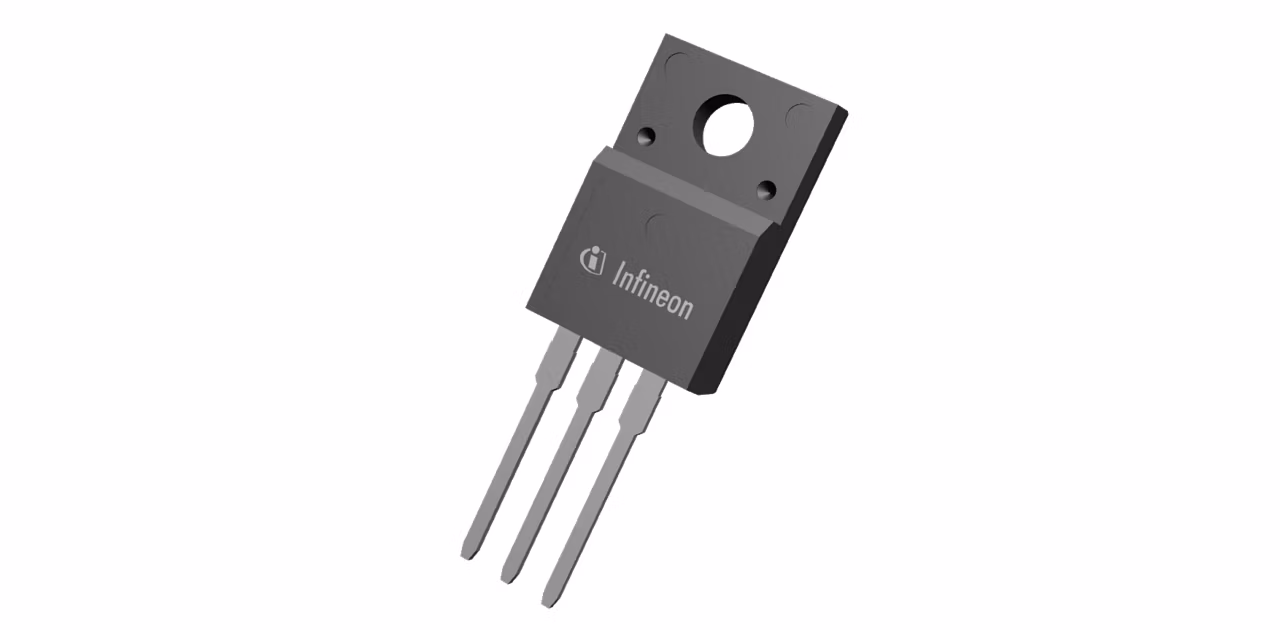

This OptiMOS™ 3 200 V TO-220 FullPAK MOSFET is designed to meet requirements for improved system efficiency while reducing system cost, offering 32mOhm RDS(on) . The portfolio extension is optimized for TV power supply, desktop, adapter and gaming applications. It features optimized price/performance ratio thanks to increased power density and improved efficiency making it the optimum solution for synchronous rectification.

Infineon Technologies IPA320N20NM3S Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.03

ID (@ TC=25°C) max

26 A

ID (@25°C) max

26 A

IDpuls max

104 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

38 W

QG (typ @10V)

22 nC

RDS (on) (@10V) max

32 mΩ

VDS max

200 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Features

  • Low voltage overshoot
  • Low on-state resistance (RDS(on))
  • Electrically isolated package

Description

  • Less paralleling required
  • No heat to circuit board
  • Less heat generation
  • Fits TO-220 footprint
