IPA030N10N3 G
  • IPA030N10N3 G

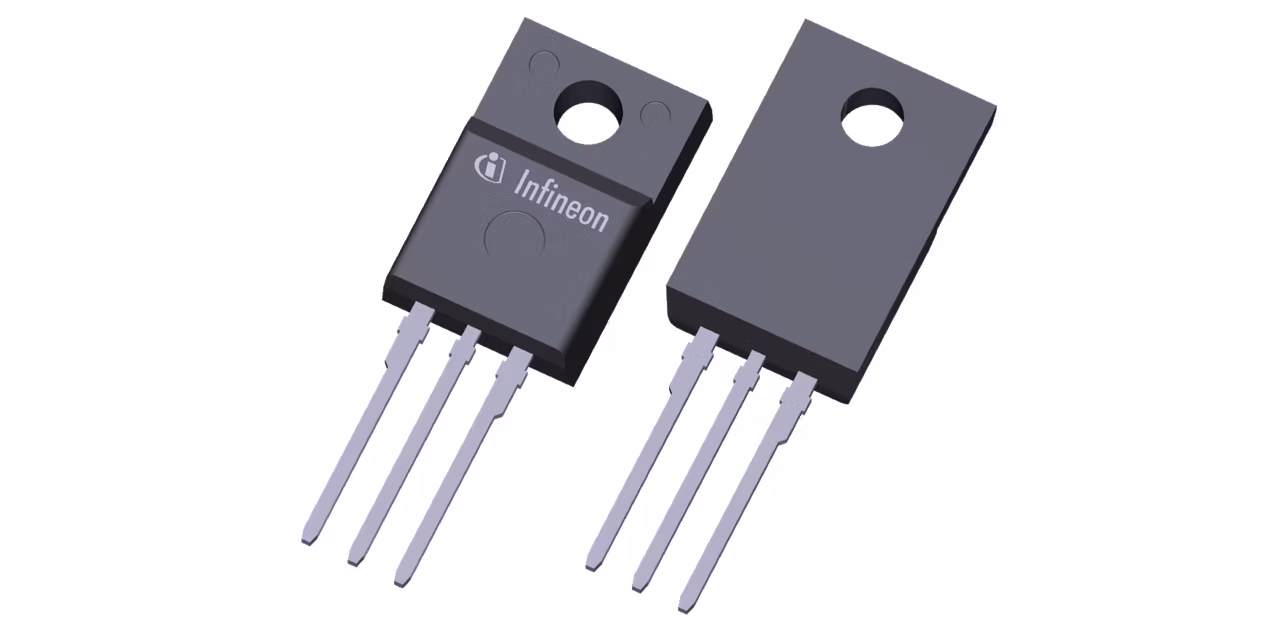

IPA030N10N3 G

Infineon's 100V OptiMOS™ power MOSFETs offer superior solutions for high efficiency, high power-density SMPS. Compared to the next best technology this family achieves a reduction of 30% in both R DS(on) and FOM (figure of merit).

Infineon Technologies IPA030N10N3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

2.55

Ciss

11100 pF

Coss

1940 pF

ID (@25°C) max

79 A

IDpuls max

316 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

41 W

QG (typ @10V)

155 nC

RDS (on) (@10V) max

3 mΩ

Rth

3.7 K/W

VDS max

100 V

VGS(th) range

2 V to 3.5 V

VGS(th)

2.7 V

Features

  • Excellent switching performance
  • World’s lowest RDS(on)
  • Very low Qg and Qgd
  • Excellent gate charge x RDS(on) product (FOM)
  • RoHS compliant-halogen free
  • MSL1 rated 2

Description

  • Environmentally friendly
  • Increased efficiency
  • Highest power density
  • Less paralleling required
  • Smallest board-space consumption
  • Easy-to-design products
