IPA029N06NM5S
  • IPA029N06NM5S

IPA029N06NM5S

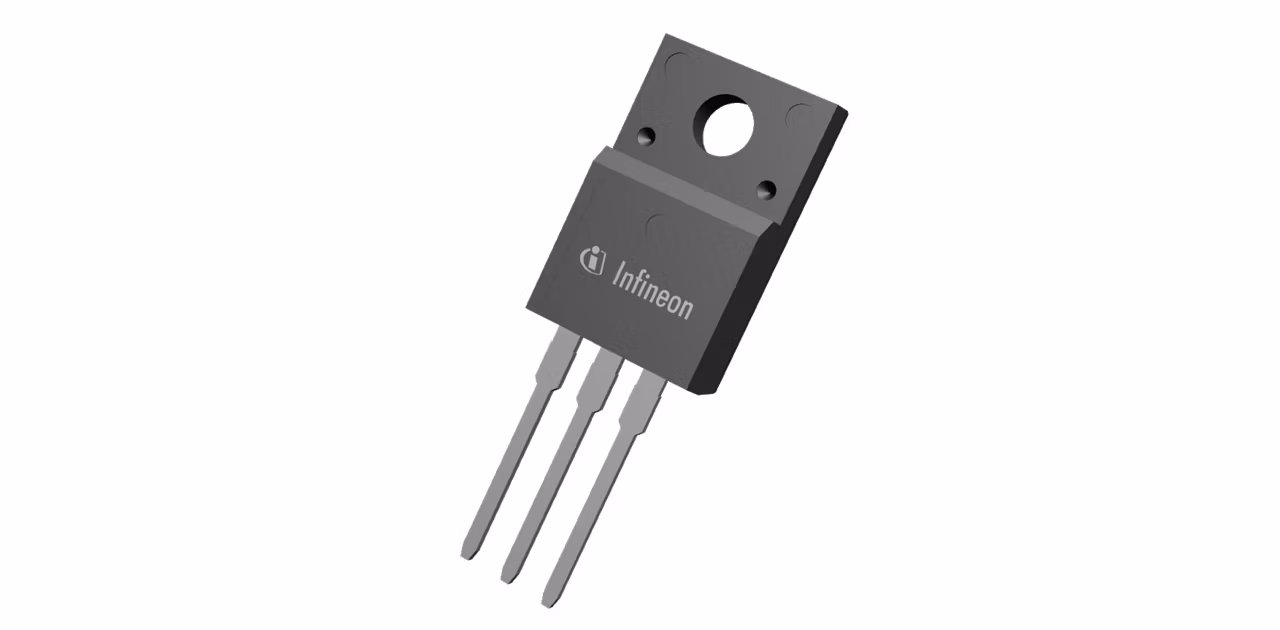

The OptiMOS™ 5 power MOSFET 60V in TO-220 FullPAK package (IPA029N06NM5S) features increased power density, improved efficiency with low RDS(on) of 2.9mOhm and lower system costs. The TO-220 FullPAK package portfolio of Infineon’s power MOSFETs presents a perfect solution for synchronous rectification. These products are optimized for applications such as TV power supply, adapter, desktop and gaming.

Infineon Technologies IPA029N06NM5S Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.98

ID (@ TC=25°C) max

87 A

ID (@25°C) max

87 A

IDpuls max

348 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

38 W

QG (typ @10V)

56 nC

RDS (on) (@10V) max

2.9 mΩ

VDS max

60 V

VGS(th) range

2.1 V to 3.3 V

VGS(th)

2.8 V

Features

  • Low voltage overshoot
  • Low on-state resistance (RDS(on))
  • No need for electrical isolation material which is normally used in TO-220 packages

Description

  • Less paralleling required
  • Generated heat is not diverted to the printed circuit board
  • Less heat generation
  • Fits TO-220 footprint
