IMZC120R078M2H
  • IMZC120R078M2H

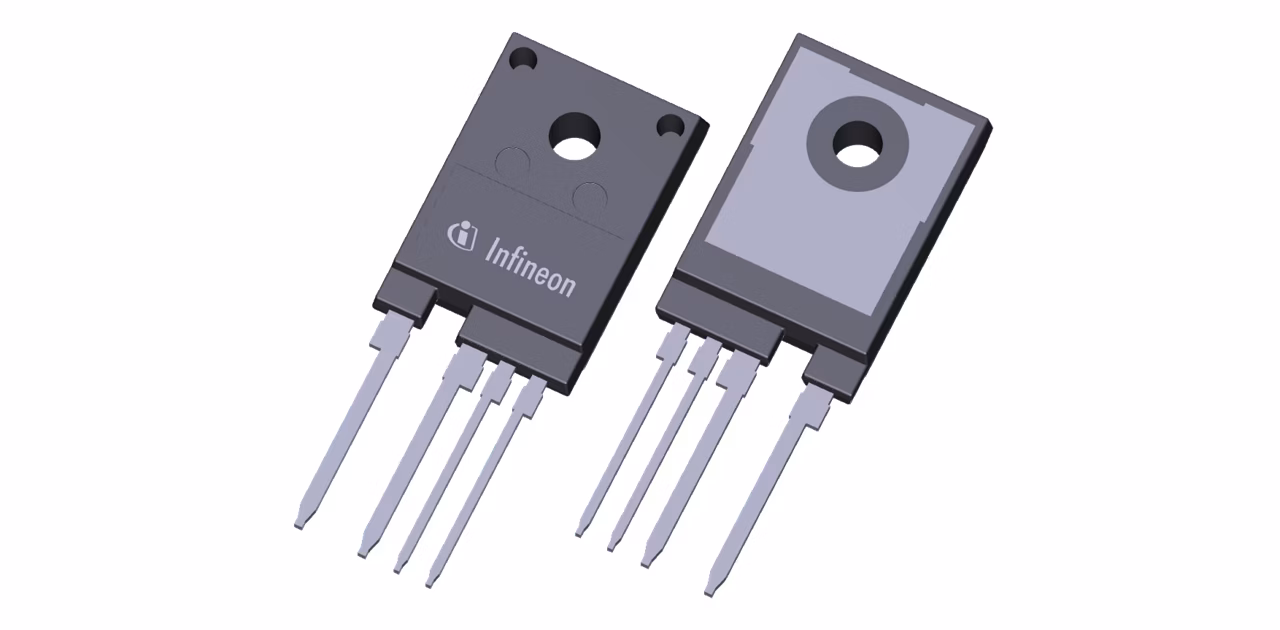

IMZC120R078M2H

Active and preferred

The 1200 V, 78 mΩ G2 in a TO-247 4pin with high creepage package builds on the strengths of Generation 1 technology with significant improvement that provides an advanced solution for more cost-optimized, efficient, compact, easy-to-design and reliable system. It enhanced better performance in both hard-switching operation and soft-switching topologies for all common combinations of AC-DC, DC-DC, and DC-AC stages.

Infineon Technologies IMZC120R078M2H Product Info

16 April 2026 0

Parameters

Ciss

700 pF

Coss

28 pF

ID (@ TC=25°C) max

28 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-247-4 high creepage

Pin Count

4 Pins

Polarity

N

Ptot (@ TA=25°C) max

143 W

Qgd

5 nC

QG

21 nC

Qualification

Industrial

RDS (on) (@ Tj = 25°C)

78 mΩ

RthJA max

62 K/W

RthJC max

1.04 K/W

Technology

CoolSiC™ G2

Tj max

200 °C

VDS max

1200 V

Apps

EV charging, Industrial motor drives and controls, Photovoltaic, Uninterruptible power supplies (UPS)

Features

  • RDS(on) = 78 mΩ at VGS = 18 V, Tvj = 25°C
  • Very low switching losses
  • Wider max. VGS range from -10 V to +25 V
  • Overload operation up to Tvj = 200°C
  • Short circuit withstand time 2 µs
  • Benchmark gate threshold voltage 4.2 V
  • Robust against parasitic turn on
  • .XT interconnection technology
  • Tighter VGS(th) parameter distribution

Description

  • Better energy efficiency
  • Cooling optimization
  • Higher power density
  • New robustness features
  • Highly reliable
  • Easy paralleling
