IMZ120R045M1
  • IMZ120R045M1

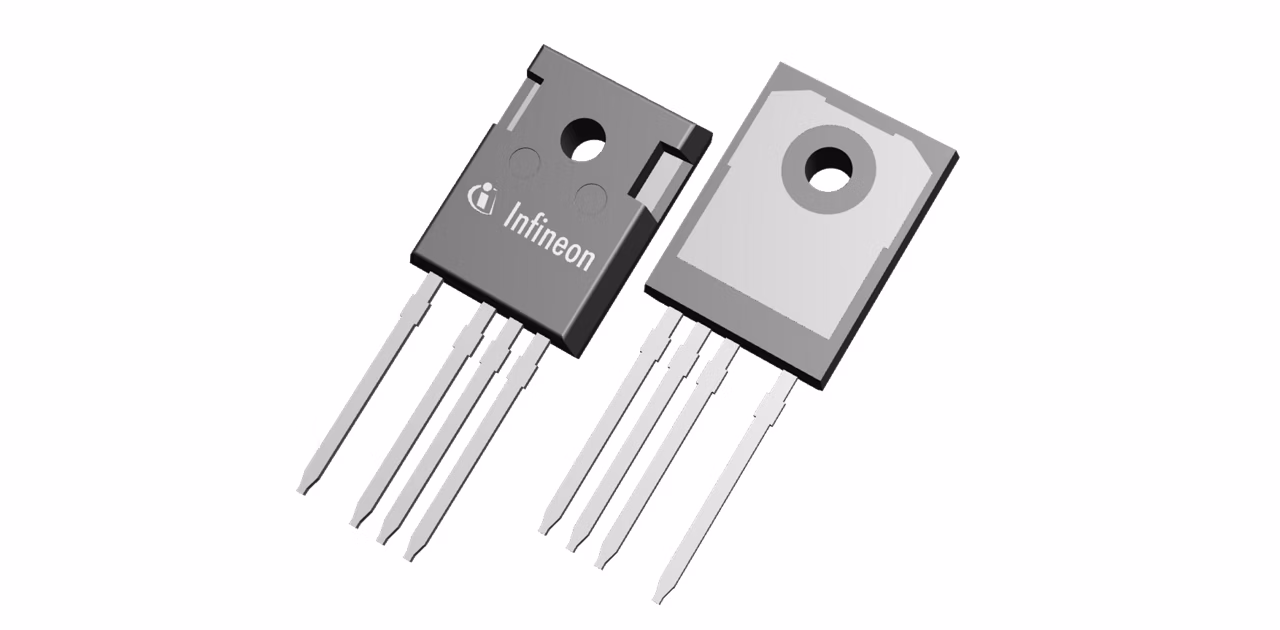

IMZ120R045M1

CoolSiC™ MOSFET discrete 1200 V, 45 mΩ G1 in TO247-4package build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability. The SiC MOSFET offers the lowest gate charge and device capacitance levels seen in 1200 V switches, no reverse recovery losses of the internal commutation proof body diode, temperature independent low switching losses, and threshold-free on-state characteristic.

Infineon Technologies IMZ120R045M1 Product Info

16 April 2026 0

Parameters

Ciss

1900 pF

Coss

115 pF

ID (@25°C) max

52 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-247-4

Pin Count

4 Pins

Polarity

N

Ptot (@25°C) max

228 W

Qgd

13 nC

QG (typ @15V)

52 nC

Qualification

Industrial

RDS (on) (@ Tj = 25°C)

45 mΩ

RthJA max

62 K/W

RthJC max

0.66 K/W

Technology

CoolSiC™ G1

Tj max

175 °C

VDS max

1200 V

Apps

EV charging, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

  • Best in class switching
  • Best in class conduction losses
  • High threshold voltage, Vth > 4 V
  • 0V turn-off gate voltage
  • Wide gate-source voltage range
  • Robust and low loss body diode
  • Temp. indep. turnoff switch. losses
