IDWD120E120D7
  • IDWD120E120D7

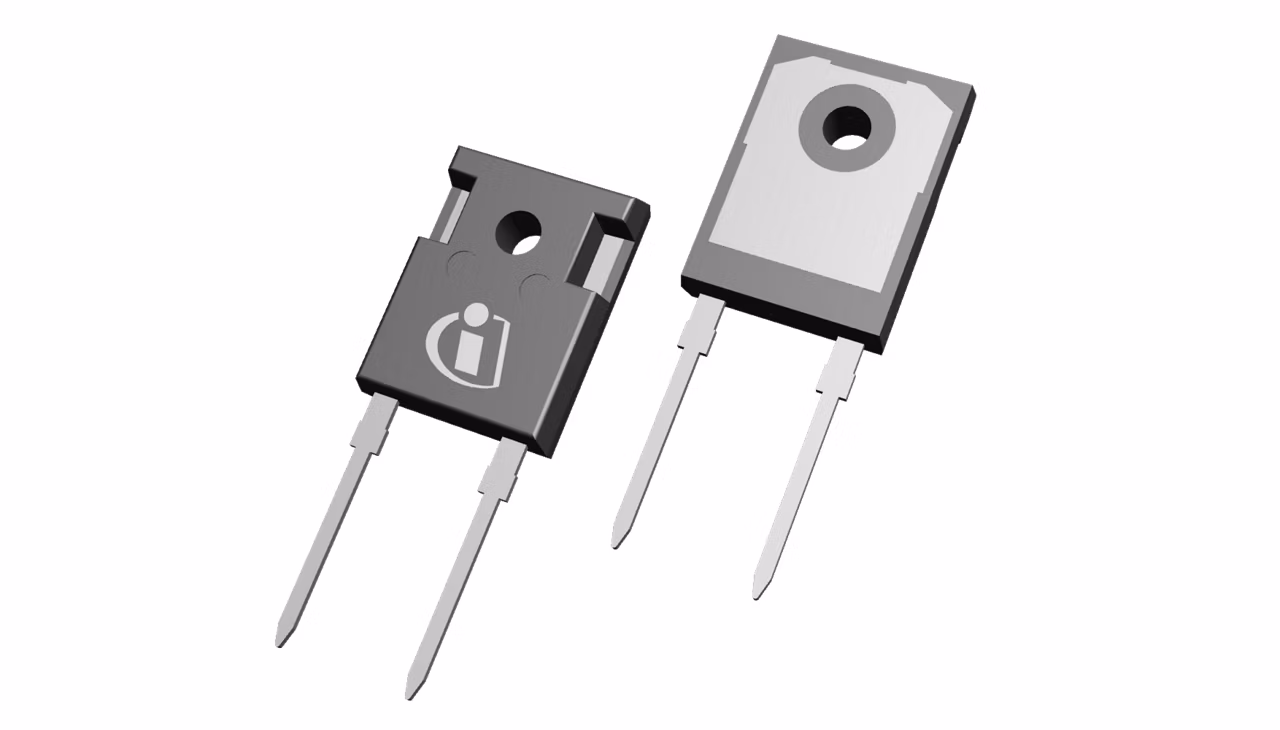

IDWD120E120D7

Active and preferred

Soft-switching 1200 V, 120 A Emitter Controlled 7 silicon diode in TO-247-2 2pin package.

Infineon Technologies IDWD120E120D7 Product Info

16 April 2026 0

Parameters

Configuration

Single

I(FSM) max

420 A

IF max

177 A

IF

120 A

IR max

20 µA

Irrm

25 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

478 W

Qrr

2.7 µC

RthJC max

0.31 K/W

trr

215 ns

VF max

3 V

VF

2.5 V

Voltage Class max

1200 V

Apps

EV charging, Photovoltaic, Residential heat pumps, Uninterruptible power supplies (UPS)

Features

  • Low forward voltage (VF)
  • Very soft and fast recovery behavior
  • Low reverse recovery charge
  • HV-H3TRB pass by JEDEC Standard
  • Tvjmax = 175°C
  • Qualified according to JEDEC

Description

  • Highest efficiency
  • Maximize system output power
  • Optimized performance
  • Humidity robust design
