IDW40E65D2
  • IDW40E65D2

IDW40E65D2

Active

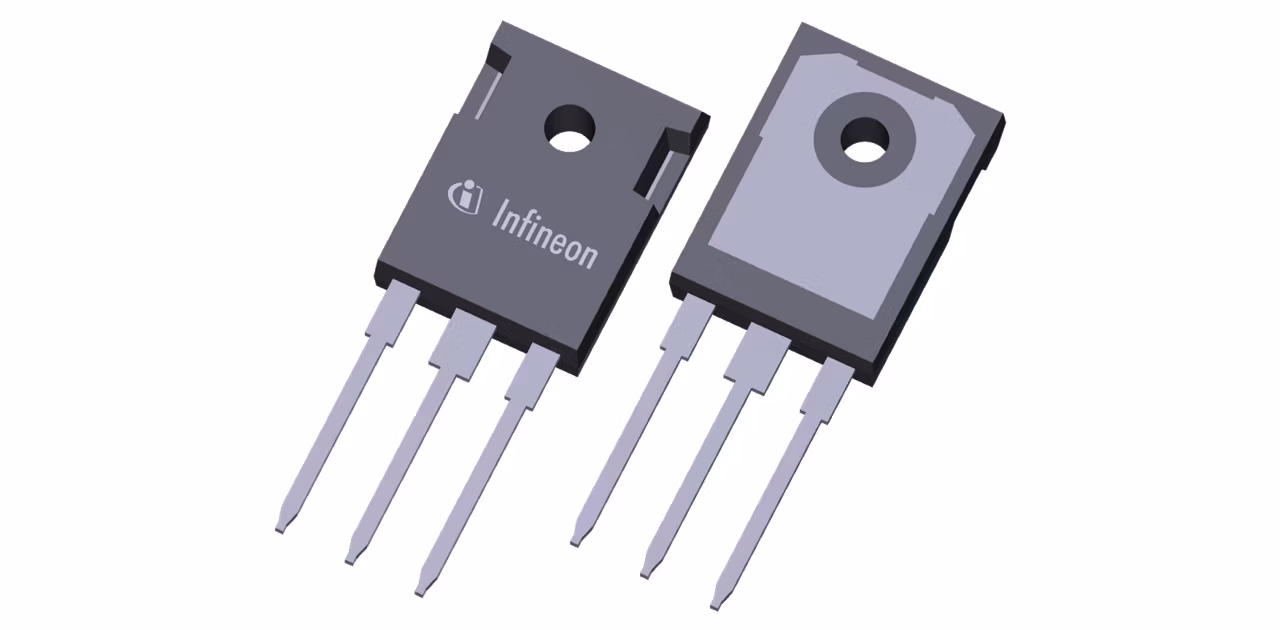

Rapid 2 switching 650 V, 40 A emitter controlled power silicon diode in a TO-247 package is designed for applications switching between 40 kHz and 100 kHz.

Infineon Technologies IDW40E65D2 Product Info

16 April 2026 0

Parameters

Configuration

Single

I(FSM) max

320 A

IF max

80 A

IF

40 A

IR max

40 µA

Irrm

2.9 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

180 W

Qrr

0.13 µC

RthJC max

0.84 K/W

trr

75 ns

VF max

1.6 V

VF

1.6 V

Voltage Class max

650 V

Apps

Home appliances, Residential air conditioning, Uninterruptible power supplies (UPS)

Features

  • Lowest reverse recovery charge
  • Highest softness-factor
  • Low reverse recovery time (trr)
  • Lowest Irrm
  • Low turn-on losses on boost switch
