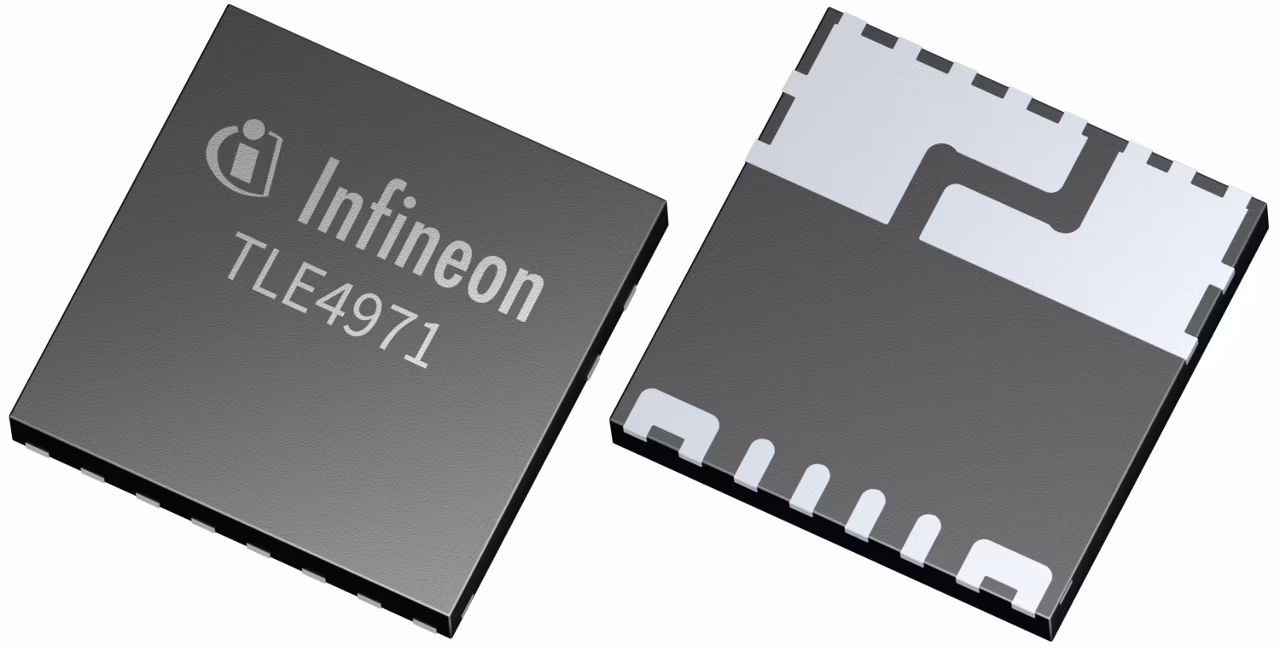

TLE4971-A050N5-E0002
  • TLE4971-A050N5-E0002

TLE4971-A050N5-E0002

Active and preferred

Coreless automotive current sensor, pre-programmed offers high precision current measurement in applications with lower currents usable for AC and DC measurements. All negative effects commonly known from sensors using flux concentration techniques are avoided. The differential measurement principle allows great stray field suppression for operation in harsh environments. Single ended analog output configuration.

Infineon Technologies TLE4971-A050N5-E0002 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Classification

AEC-Q100

Current rail

internal (iCR)

Current range

50 A

Diagnosis

OCD 1, OCD 2, OV, UV, diagnosis mode

Green

RoHS compliant, Halogen free

Interfaces

Analog, SE-Aout

Isolation UIORM

1150 V

Supply Voltage

3.1 - 3.5 V

Apps

On-board charging (OBC), HVAC control module, Refrigerators and freezers, General purpose motor drive, Commercial HVAC system

Features

  • Single ended analog output mode
  • Integrated current rail with 220 µΩ
  • SMD package with very small form factor
  • Single supply voltage, 3.1 V to 3.5 V
  • Highly accurate, DC&AC current sensing
  • Typical bandwidth of 210 kHz
  • Excellent stability of offset over temp
  • Galvanic functional isolation ≤ 1150 V
  • Superior magnetic stray field supression
  • Two independent fast (OCD) pins
  • Pre-calibrated sensor
  • AEC-Q100 grade 1 qualified

Description

  • No need of external calibration
  • Error < 0.5° over temperature
  • For accurate control and metering
  • Easy design with standard footprint
  • Six pre-programmed variants
