IDM05G120C5

Active and preferred

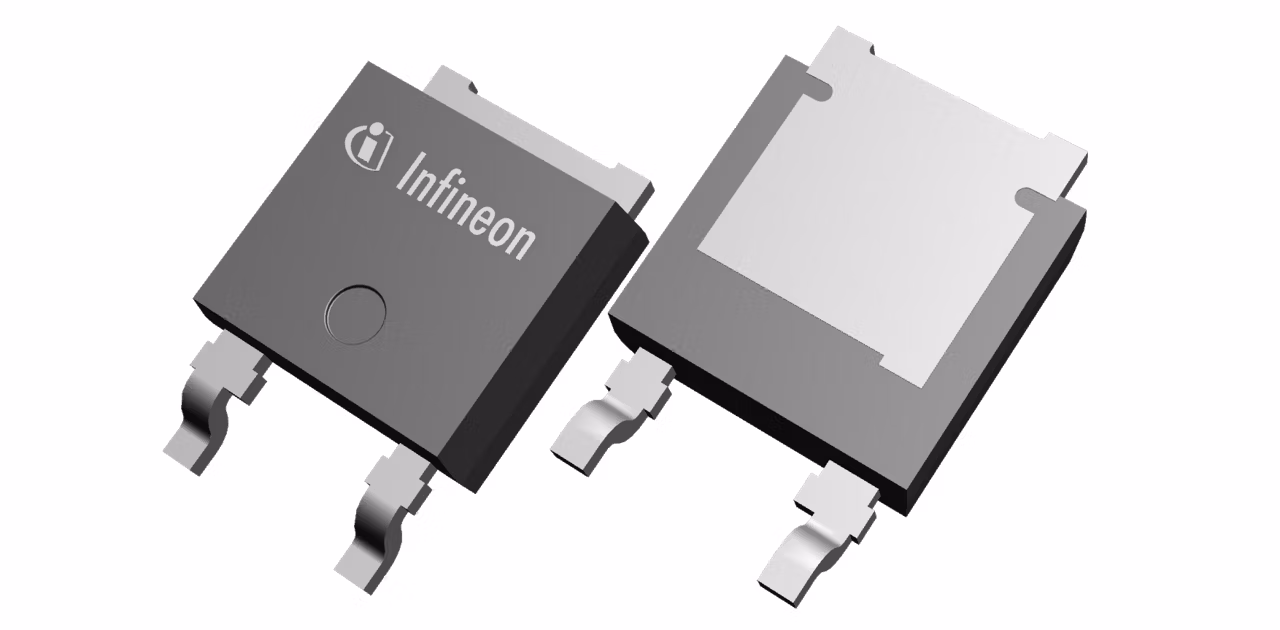

The CoolSiC™ Schottky diode generation 5 1200 V, 5 A in a DPAK real2pin package, presents a leading edge technology for SiC Schottky Barrier diodes. The thin wafer technology, already introduced with G2, is now combined with a new merged pn junction improving diode surge current capabilities. The result is a series of products delivering market leading efficiency and more system reliability at an attractive cost point.

Infineon Technologies IDM05G120C5 Product Info

16 April 2026 0

Parameters

I(FSM) max	59 A
IF max	5 A
IR	2.5 µA
Package	PG-TO252-2 (DPAK)
Ptot max	144 W
QC	24 nC
Qualification	Industrial
RthJC	0.8 K/W
VF	1.5 V

Apps

DIN rail power supply solutions, LED lighting system design, High-voltage direct current (HVDC), Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

Best-in-class forward voltage (V_F)
No reverse recovery charge
Mild positive temp. depend. of V_F
Best-in-class surge current capabi.
Excellent thermal performance
