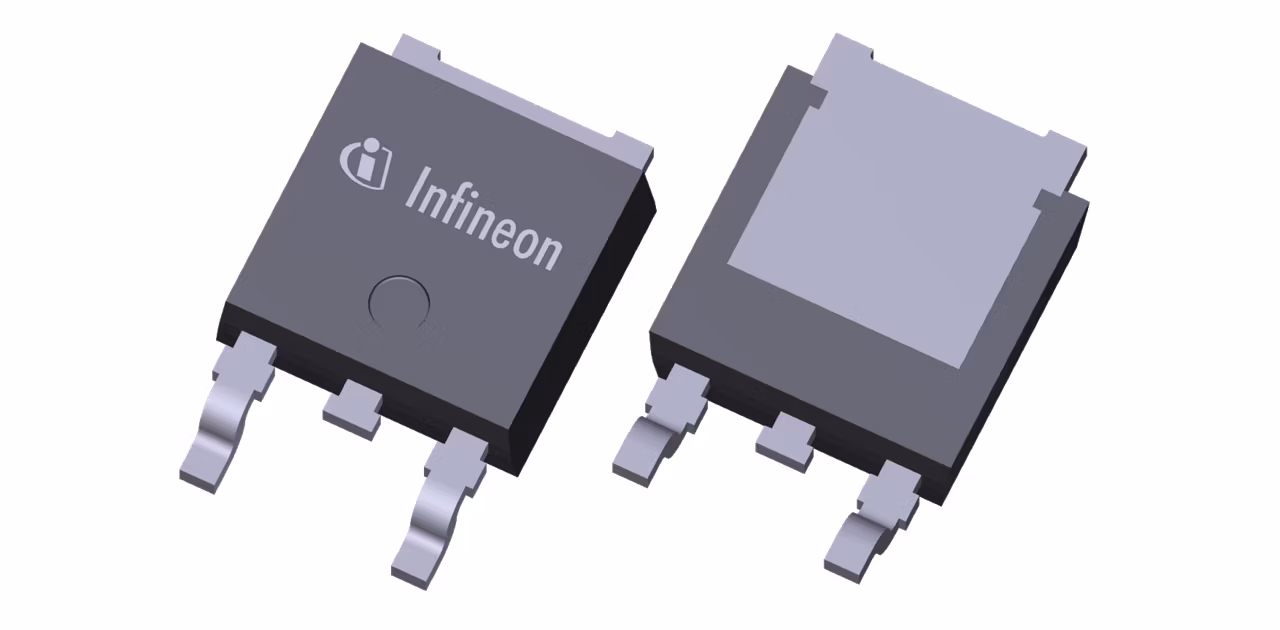

SPD15P10PL G

Active and preferred

Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Infineon Technologies SPD15P10PL G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k	0.62
Ciss	1120 pF
Coss	272 pF
ID (@25°C) max	-15 A
IDpuls max	-60 A
Mode	Enhancement
Mounting	SMD
Operating Temperature max	175 °C
Package	DPAK (TO-252)
Polarity	P
Ptot max	128 W
QG (typ @10V)	47 nC
RDS (on) (@10V) max	200 mΩ
Rth	1.17 K/W
VDS max	-100 V
VGS(th)	-1.5 V

Apps

Automotive LED lighting systems, Automotive battery management system (BMS) - 48 V, Light electric vehicle solutions, Telecommunications infrastructure

Features

Enhancement mode
Avalanche rated
Pb-free lead plating; RoHS compliant
