IDK16G120C5
  • IDK16G120C5

IDK16G120C5

Active and preferred

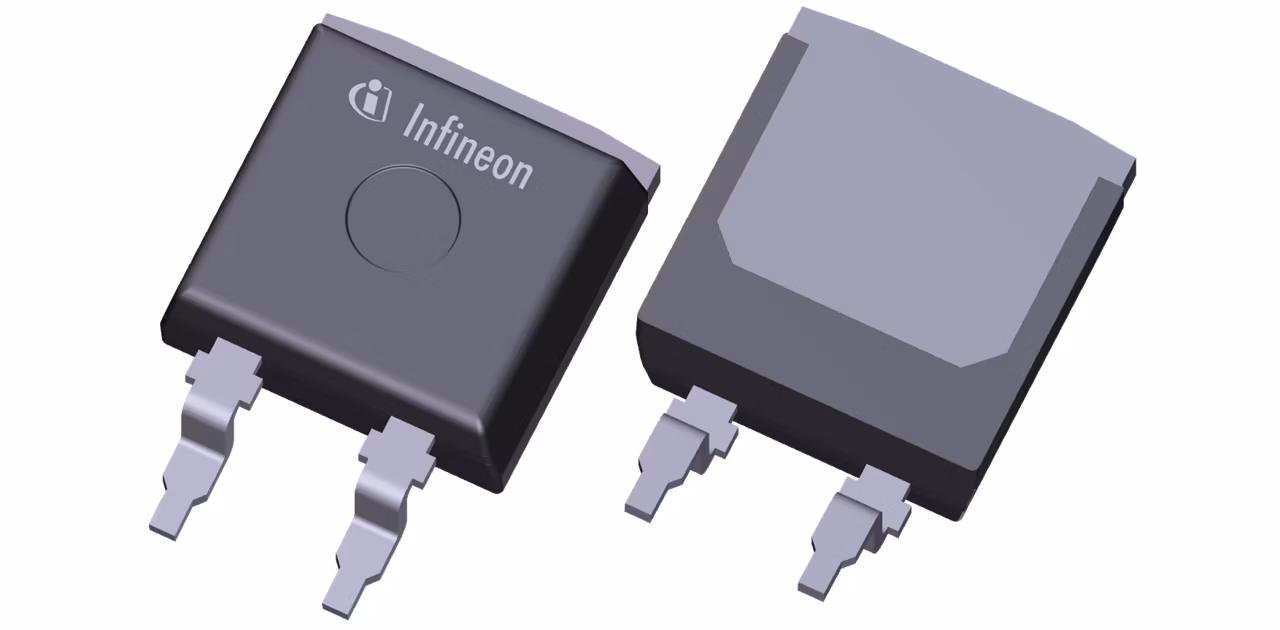

The CoolSiC™ Schottky diodes generation 5 1200 V, 16 A is now available in a D2PAK real 2-pin package. Connecting SiC diodes in parallel and in a small device package, a high efficient system can be achieved while minimizing board space requirement. The elimination of the middle pin reduces a risk of partial discharge at high voltage and high frequency operation.

Infineon Technologies IDK16G120C5 Product Info

16 April 2026 0

Parameters

I(FSM) max

140 A

IF max

16 A

IR

5.5 A

Package

PG-TO263-2 (D2PAK)

Ptot max

250 W

QC

57 nC

Qualification

Industrial

RthJC

0.46 K/W

VF

1.65 V

Apps

Photovoltaic, 1-phase string inverter solutions, Motor control, Power conversion, Uninterruptible power supplies (UPS)

Features

  • Zero Qrr
  • No reverse recovery losses
  • High surge current capability
  • Tight forward voltage distribution
  • Temp.-independ. switching behavior
  • Low forward voltage*
  • *even at high operating temperature
  • Real two-pin package
  • 4.7 mm creepage distances
  • 4.4 mm clearance distances
