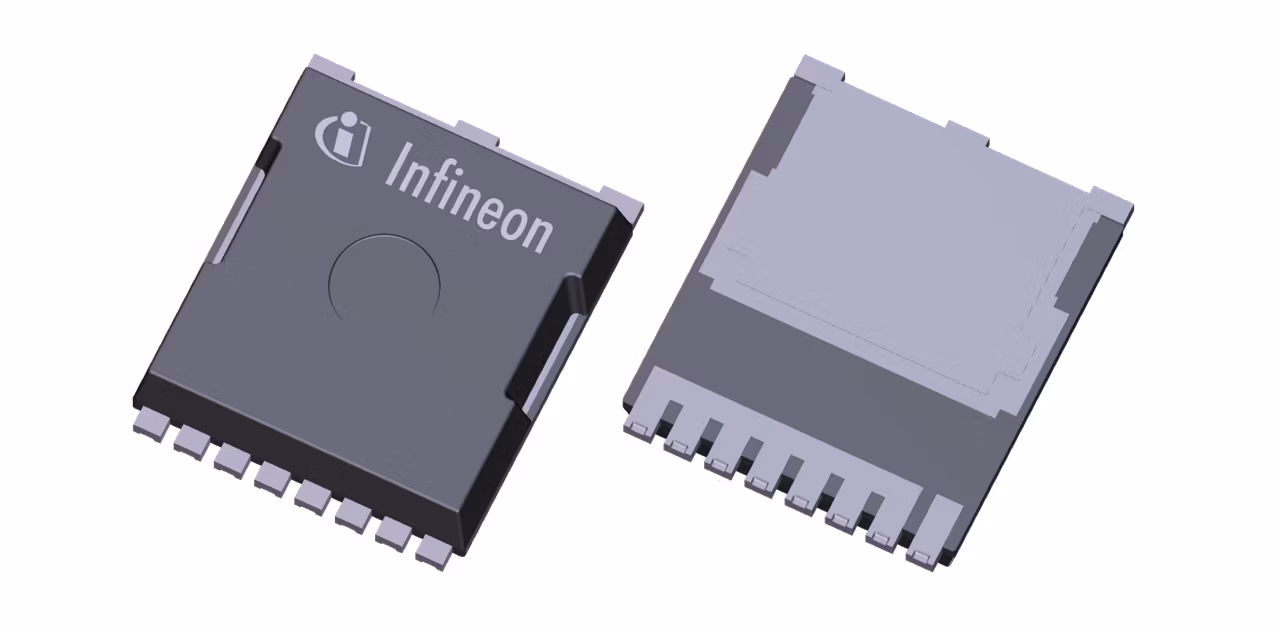

IAUT150N10S5N035

Active and preferred

Infineon Technologies IAUT150N10S5N035 Product Info

16 April 2026 0

Budgetary Price €/1k	1.11
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Germany
ID (@25°C) max	150 A
IDpuls max	600 A
Launch year	2017
Operating Temperature range	-55 °C to 175 °C
Package	TOLL (PG-HSOF-8)
Planned to be available until at least	2038
Polarity	N
Ptot max	166 W
QG (typ @10V) max	87 nC
QG (typ @10V)	67 nC
Qualification	Automotive
RDS (on) (@10V) max	3.5 mΩ
RthJC max	0.9 K/W
Technology	OptiMOS™5
VDS max	100 V
VGS(th) range	2.2 V to 3.8 V
VGS(th)	3 V

Automotive battery management system (BMS) - high-voltage, Power conversion
