IAUCN10S7L040

Active and preferred

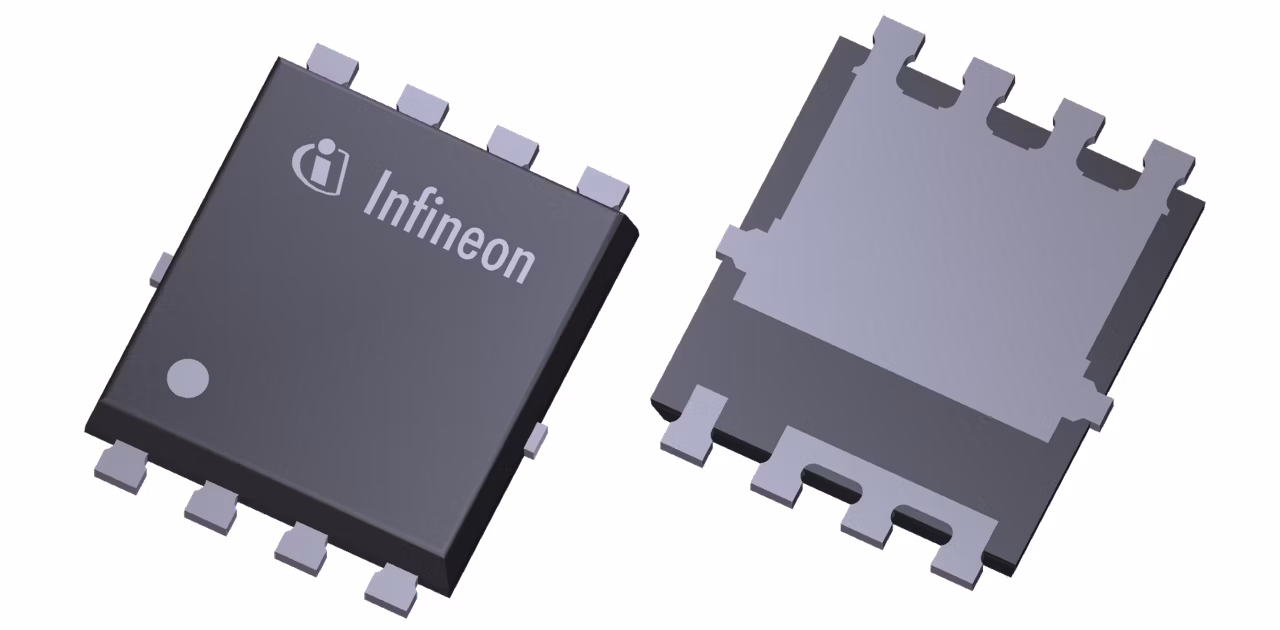

IAUCN10S7L040 is an automotive MOSFET built with Infineon’s leading edge, power semiconductor technology; OptiMOS™ 7 100V. This product is offered in our versatile, robust, high current SSO8 5x6mm² SMD package. It is designed specifically for high performance, high quality and the robustness needed for demanding automotive applications.

Infineon Technologies IAUCN10S7L040 Product Info

16 April 2026 0

Parameters

Country of Assembly (Last BE site, current, subject to change)	Indonesia, Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Austria, Germany
ID (@25°C) max	120 A
Launch year	2025
Operating Temperature range	-55 °C to 175 °C
Package	PG-TDSON-8
Planned to be available until at least	2038
Polarity	N
QG (typ @10V) max	66 nC
QG (typ @10V)	50.6 nC
Qualification	Automotive
RDS (on) (@10V) max	3.95 mΩ
Technology	OptiMOS™7
VDS max	100 V
VGS(th) range	1.2 V to 2 V
VGS(th)	1.6 V

Apps

Domain controller for ADAS & autonomous driving, Auxiliary motor control 48 V, Automotive power distribution, Zonal DC-DC converter 48 V-12 V, Zone control unit, Automotive LED front single light functions, Full LED headlight system - multi-channel LED driver, Automotive battery management system (BMS) - 48 V, Automotive battery protection & disconnection, Automotive electric pumps & fans 48 V, Light electric vehicle solutions

Features

Low on-resistance, R_DS(on)
Leading edge FOM (R_{DS (on)} x Qg)
Fast switching times (turn on/off)
High avalanche current capability
High SOA ruggedness
Tight threshold voltage, V_GS(th), range
Excellent thermal performance
Low package resistance and inductance
Unique fused source pins
Extended qualification beyond AEC-Q101
Enhanced electrical testing
MSL1 up to 260°C peak reflow

Description

Very low conduction losses
Superior switching performance
Highest power density in 5x6mm package
High power efficiency
Small footprint & efficient cooling
Well suited for parallel placement
Increased design ruggedness
Better solder joint reliability
Designed for Automotive robustness
High quality production for Automotive
