IAUC50N08S5N102
  • IAUC50N08S5N102

IAUC50N08S5N102

Active and preferred

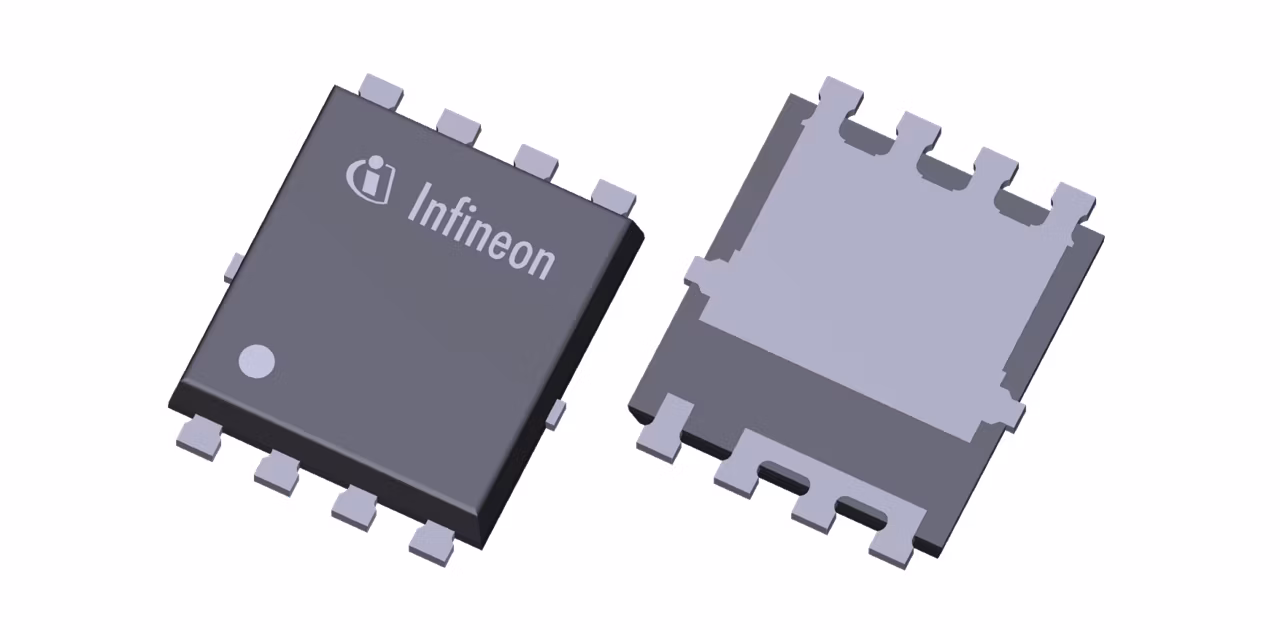

The IAUC50N08S5N102 is a 10.2mR 80V MOSFET in a 5x6 mm² SSO8 package, using Infineon’s leading OptiMOS™ 5 technology. Next to others it is used in DCDC converter and motor control.

Infineon Technologies IAUC50N08S5N102 Product Info

16 April 2026 1

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Austria, Germany

ID (@25°C) max

50 A

Launch year

2021

Operating Temperature range

-55 °C to 175 °C

Package

PG-TDSON-8

Planned to be available until at least

2038

Polarity

N

QG (typ @10V) max

21 nC

QG (typ @10V)

16 nC

Qualification

Automotive

RDS (on) (@10V) max

10.2 mΩ

Technology

OptiMOS™5

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

VGS range

2.2 V to 3.8 V

Apps

EV traction inverter, On-board charging (OBC)

Features

  • OptiMOS™ 5 power MOSFET
  • N-channel-Enhancement mode-Normal Level
  • AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device
