IDFW40E65D1E
  • IDFW40E65D1E

IDFW40E65D1E

Active and preferred

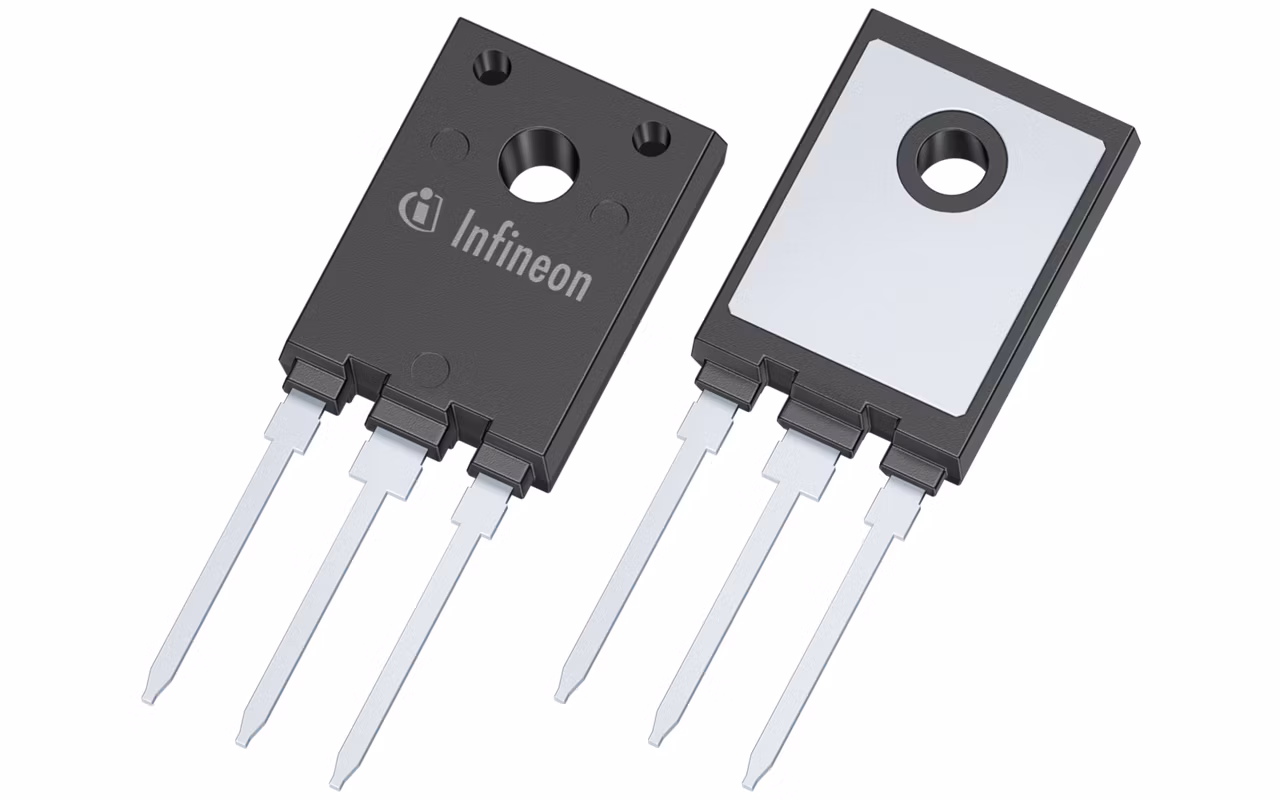

Rapid 1 switching 650 V, 40 A emitter controlled silicon power diode in a TO-247 advanced isolation package for a best cost efficient solution.

Infineon Technologies IDFW40E65D1E Product Info

16 April 2026 0

Parameters

Configuration

Single

I(FSM) max

120 A

IF max

42 A

IF

40 A

IR max

40 µA

Irrm

11 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

78 W

Qrr

0.57 µC

RthJC max

1.92 K/W

trr

76 ns

VF max

2.1 V

VF

1.7 V

Voltage Class max

650 V

Apps

Automotive e-compressor - high-voltage, General purpose motor drive, Heating ventilation and air conditioning (HVAC)

Features

  • 650V emitter controlled technology
  • Temperature stable behavior
  • Low forward voltage (VF)
  • Low reverse recovery charge (Qrr)
  • Low reverse recovery current (Irrm)
  • Softness factor >1
  • Maximum junction temperature 175°C
  • 2500 VRMS electrical isolation
  • 100% tested isolated mounted surface
  • Pb-free plating: RoHS compliant
  • Qualified for industrial application

Description

  • no thermal eqiupment needed
  • 35% reduction in assembling time
  • eliminated faults of isolation foil
  • Up to 10°C lower Tc
  • Up to 20% Ioutincrease
  • manufacturing process control
  • Easy paralleling
