ESD254-B1-W01005
  • ESD254-B1-W01005

ESD254-B1-W01005

Active and preferred

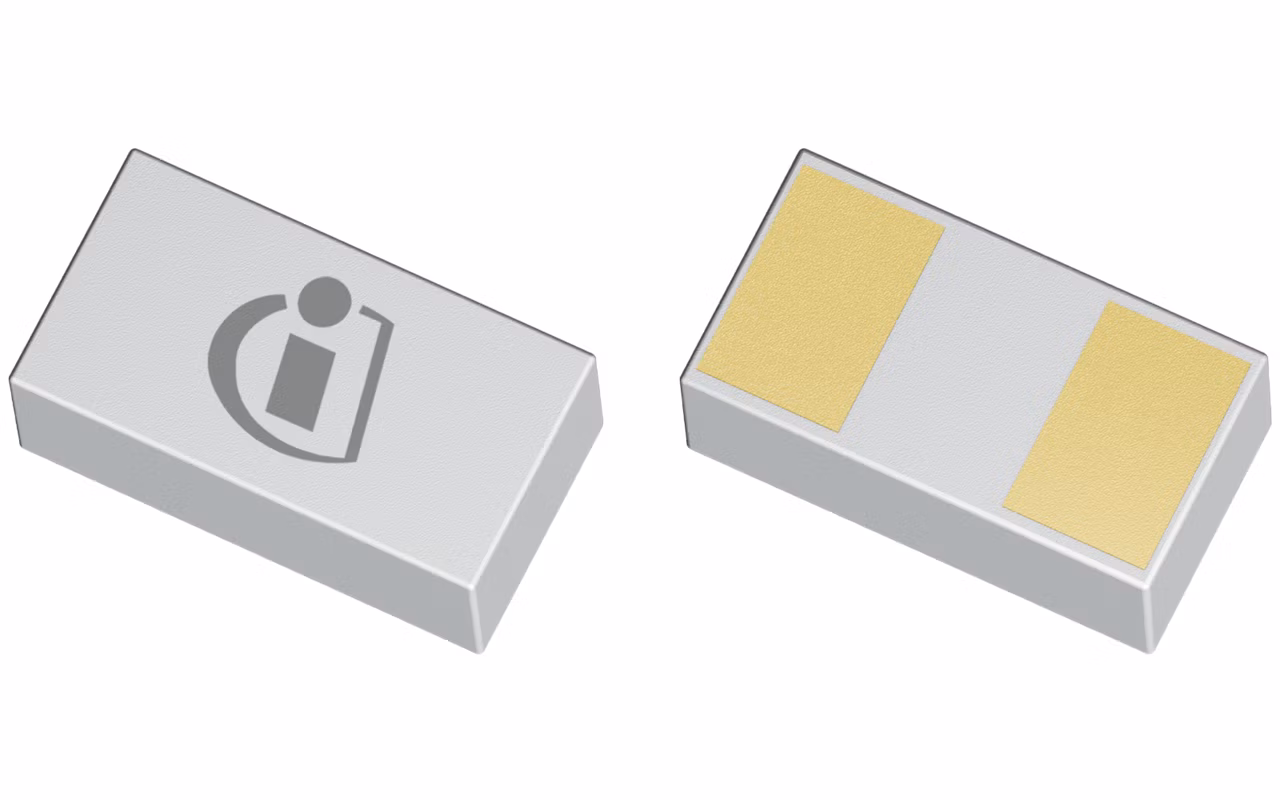

Bi-directional, 24 V, 2.5 pF, 01005, RoHS and Halogen Free compliantDesigned for USB 3.1 Gen 1 and Gen 2

Infineon Technologies ESD254-B1-W01005 Product Info

16 April 2026 0

Parameters

CL max

4 pF

CL

2.5 pF

Green

RoHS compliant, Halogen free

IEFT

40 A

IPP

2 A

IR max

100 nA

IR

1 nA

Protected Lines

1

Rdyn (reverse)

0.38 Ω

Rdyn (forward)

0.38 Ω

Vcl typ. reverse (TLP 16A)

33.5V

Vcl typ. reverse (@16A)

33.5 V

VESD range

-13 kV to 13 kV

VWM range

-24 V to 24 V

Features

  • ESD / transient protection according to:
  • IEC61000-4-2 (ESD): ±15/±13 kV (air / contact discharge)
  • IEC61000-4-4 (EFT): ±2kV / ±50 A (5/50 ns)
  • IEC61000-4-5 (Surge): ±2 A (8/20 μs)
  • Bi-directional working voltage up to: VWM = ±24 V
  • Line capacitance: CL = 2.5 pF (typical) at f = 1 MHz
  • Clamping voltage: VCL = 33.5 V (typical) at ITLP = 16 A with RDYN = 0.38 Ω (typical)
  • Very low reverse current: IL < 1 nA (typical)
  • Small form factor SMD size 01005 and low profile (0.43 mm x 0.23 mm x 0.15 mm)
  • Bi-directional and symmetric I/V characteristics for optimized design / assembly
