S28HL02GTFGBHI050
  • S28HL02GTFGBHI050

S28HL02GTFGBHI050

Active and preferred

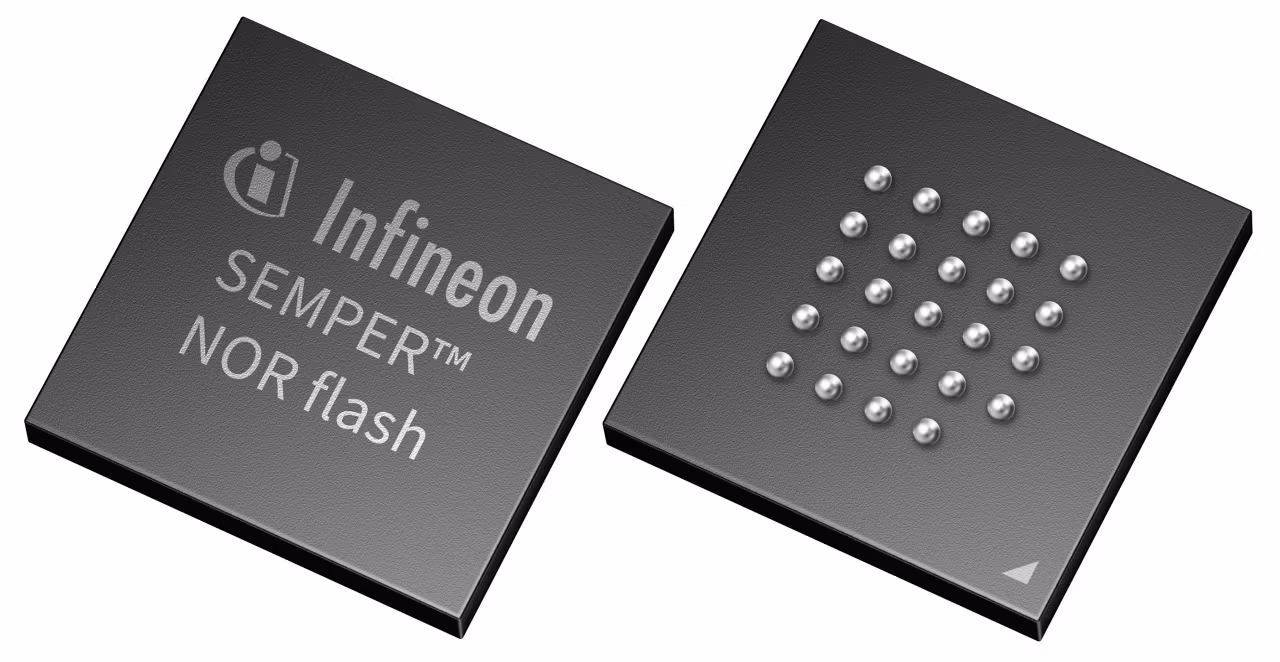

The S28HL02GTFGBHI050 is a 2 Gb SEMPER™ NOR Flash using Infineon's 45-nm MIRRORBIT™ technology in a dual-die package. It supports Octal and SPI interfaces, delivers up to 400 MBps DDR read speeds, and operates from 2.7 V to 3.6 V across temperature ranges up to 125°C. Features include ISO 26262 ASIL B compliance, Endurance flex architecture, built-in ECC, and advanced sector protection. It is ideal for automotive and safety-critical applications.

Infineon Technologies S28HL02GTFGBHI050 Product Info

16 April 2026 0

Parameters

Density

2048 MBit

Family

HL-T

Interface Bandwidth

266 MByte/s

Interface Frequency (SDR/DDR) (MHz)

133 / 133

Interfaces

Octal

Lead Ball Finish

Sn/Ag/Cu

Operating Temperature range

-40 °C to 85 °C

Operating Voltage range

2.7 V to 3.6 V

Operating Voltage

3 V

Peak Reflow Temp

260 °C

Planned to be available until at least

2037

Qualification

Industrial

Features

  • Embedded Hamming ECC for error correction
  • 16-byte data unit with 1-bit correction,
  • ECC error reporting via status registers
  • Endurance flex architecture with wear
  • Configurable high endurance or long retention
  • JEDEC JESD251 xSPI compliant interface
  • Supports Octal and legacy SPI interfaces
  • SDR and DDR modes for high-speed access
  • Flexible sector architecture: 4 KB and 256 KB
  • Page programming buffer: 256 or 512 bytes
  • Data integrity check with CRC
  • SafeBoot for initialization and corruption

Description

  • ECC improves data reliability and safety
  • 2-bit error detection prevents data
  • Status registers enable fast diagnostics
  • Wear leveling extends device lifetime
  • Flexible endurance/retention for various
  • xSPI compliance ensures broad compatibility
  • Octal/SPI support eases system integration
  • High-speed modes boost data throughput
  • Flexible sectors fit diverse memory maps
  • Large buffer increases programming speed
  • CRC checks enhance data integrity
  • SafeBoot ensures secure startup
