ESD208-B1-02EL
  • ESD208-B1-02EL

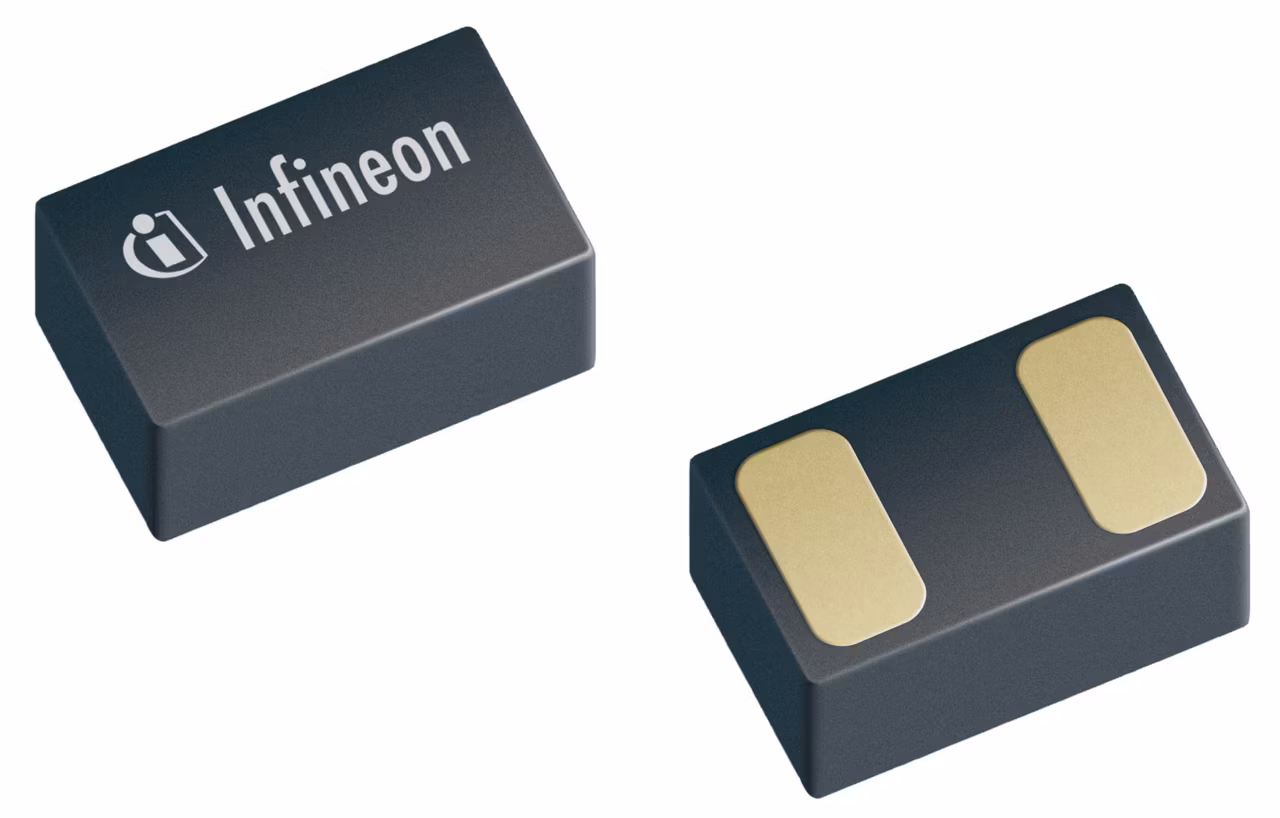

ESD208-B1-02EL

Bi-directional low Clamping ESD / Transient Protection Diode

Infineon Technologies ESD208-B1-02EL Product Info

16 April 2026 0

Parameters

CL max

9 pF

CL

6 pF

Green

RoHS compliant, Halogen free

IEFT

80A

IPP

4A

IR max

50 nA

IR

10 nA

Protected Lines

1

Rdyn (reverse)

0.2 Ω

Rdyn (forward)

0.2 Ω

Vcl typ. reverse (TLP 16A)

8 V

Vcl typ. reverse (@16A)

8 V

VESD range

-25 kV to 25 kV

VWM range

-3.3 V to 3.3 V

Features

  • ESD / transient protection according to:
    – IEC61000-4-2 (ESD): ±25 kV (air/contact)
    – IEC61000-4-4 (EFT): 80 A (5/50 ns)
    – IEC61000-4-5 (surge): 4 A (8/20 μs)
  • Maximum working voltage: VRWM ±3.3 V
  • Capacitance: CL = 6 pF (typical)
  • Extremely low clamping voltage: VCL = 6.6 V at IPP = 4 A (typical)
  • Very low reverse current IR < 10 nA typ.
  • Very small form factor down to 1.0 x 0.6 x 0.3 mm3
  • Pb-free (RoHS compliant) and halogen free package
