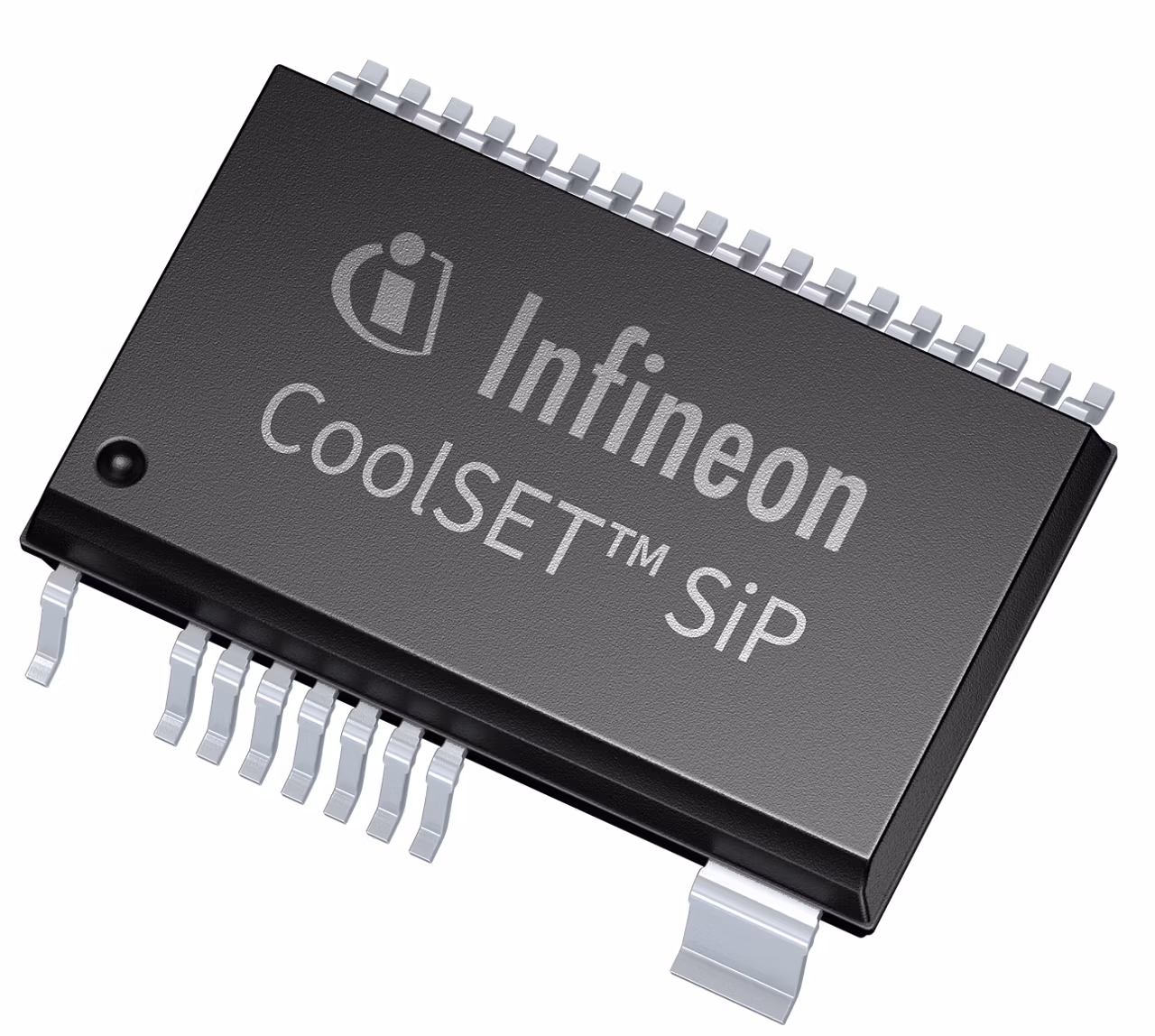

ICE186ZCM-V001
  • ICE186ZCM-V001

ICE186ZCM-V001

Active and preferred

The ICE186ZCM integrates AC zero cross detection, X-Cap discharge and 15V LDO enable pin. The 60 W power class in a small SMD footprint and the integrated 800 V power switch, primary and secondary controller, CT Link technology for isolated communication & MFI robustness reduce system complexity and BOM. Featuring zero voltage switching (ZVS) flyback operation, it minimizes switching losses and EMI. With comprehensive advanced protection features and industrial-grade qualification, it allows to meet stringent energy standards with high efficiency and creation of innovative designs for MHA with inverter auxiliary power supplies.

Infineon Technologies ICE186ZCM-V001 Product Info

16 April 2026 0

Parameters

ESD Protection max

2 kV

Mounting

SMD

Operating Temperature range

-40 °C to 150 °C

Package

PG-DSO-27

Pout

64 W

RDS (on) max

0.48 Ω

Topology

ZVS Flyback

VCC range

-0.3 V to 32 V

VDS max

800 V

Features

  • Integrated 800 V CoolMOS™ P7
  • Avalanche rugged CoolMOS™
  • Integrated 950 V startup-cell
  • Novel ZVS flyback operation
  • Built-in primary side switch control
  • Built-in secondary side feedback control
  • AC zero cross detection, X-Cap discharge
  • Integrated SR and 15V LDO enable pin
  • >92% efficiency meets energy standards
  • <30 mW standby power consumption
  • Up to 60 W output power in DSO-27 package
  • Qualified for industrial applications

Description

  • Reduced component count and complexity
  • Fast and robust start-up
  • Saves space and lower overall cost
  • Low switching losses
  • Low EMI signature
  • High reliability and robust operation
  • Extended design-in flexibility
  • Safe isolated communication
  • Limited audible noise during start-up
  • Quiet power-down operation
