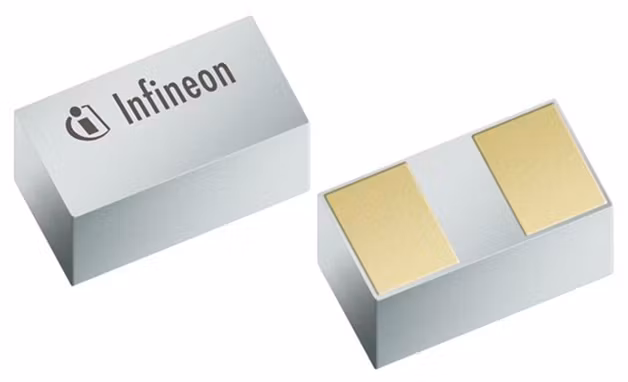

ESD188-B1-W0201
  • ESD188-B1-W0201

ESD188-B1-W0201

Active and preferred

ESD protection device with a bi-directional I/V characteristic and excellent clamping performance, extremely low capacitance and insertion loss

Infineon Technologies ESD188-B1-W0201 Product Info

16 April 2026 0

Parameters

CL

0.06 pF

Green

RoHS compliant, Halogen free

IEFT

30 A

IPP

5 A

IR

20 µA

Protected Lines

1

Rdyn

0.27 Ω

Vcl typ. reverse (@16A)

6.9 V

VWM

1 V

Features

  • Maximum working voltage: ±1 V
  • Diode type I/V characteristic
  • Line capacitance: 0.06 pF at f = 12.8 GHz
  • Insertion loss: 0.1 dB at f = 12.8 GHz
  • Clamping voltage: 6.9 V at ITLP = 16 A
  • IEC61000-4-2 (ESD): ±20 kV (air) / ±15 kV (contact)
  • IEC61000-4-4 (EFT): ±2 kV / ±40 A (5/50 ns)
  • IEC61000-4-5 (Surge): ±5 A (8/20 μs)
  • Small form factor: 0.58x0.28x0.15 mm³

Description

  • Very low insertion loss
  • Low clamping
  • Bi-directional protection device
  • Small package
