ESD155-B2-W0201

Active and preferred

Infineon Technologies ESD155-B2-W0201 Product Info

16 April 2026 0

Data center power solutions, Automotive telematics control unit (TCU), Mobile device and smartphone solutions

ESD / transient protection according to:
- IEC61000-4-2 (ESD): ±15 kV (air) / ±15 kV (contact)
- IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)
- IEC61000-4-5 (Surge): ±2 A (8/20 μs)
Bi-directional maximum working voltage: VWM = ±3.6 V
Line capacitance: CL = 0.18 pF at f = 10 GHz
Clamping voltage: Vcl = 5.4 V at ITLP = 16 A with Rdyn = 0.16 Ω
Very low leakage current: IL = 0.1 nA

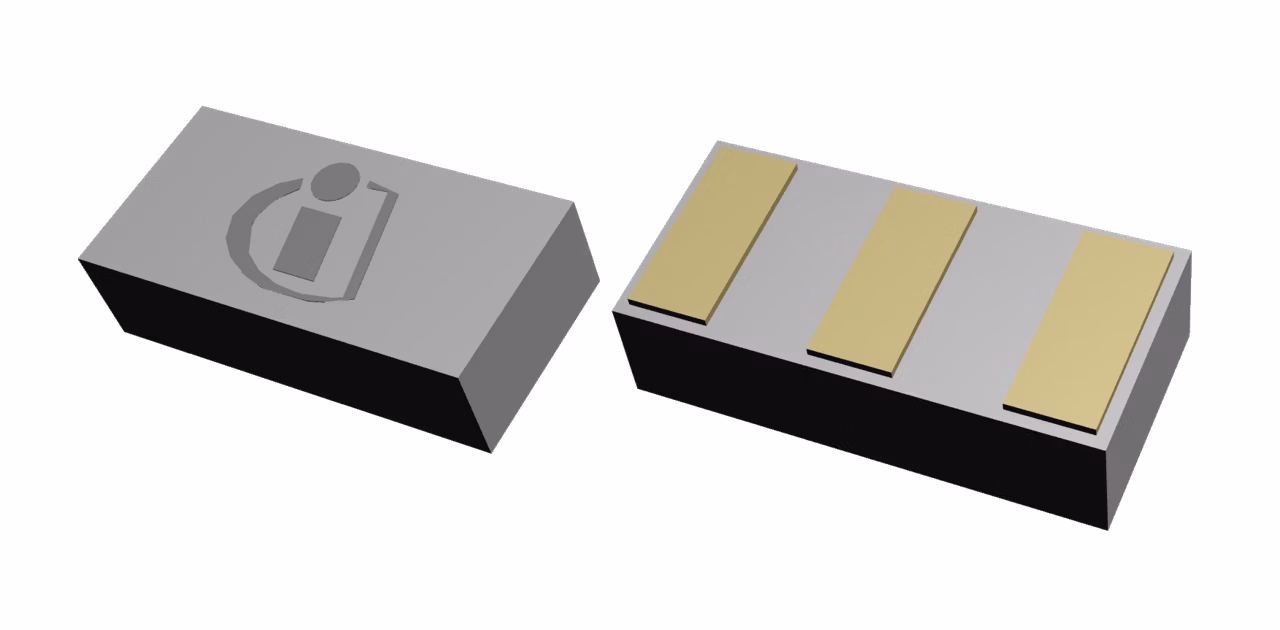

Small form factor SMD size 0201, low profile (0.58 x 0.28 x 0.15 mm³)
