ESD144-B1-W0201
  • ESD144-B1-W0201

ESD144-B1-W0201

Active and preferred

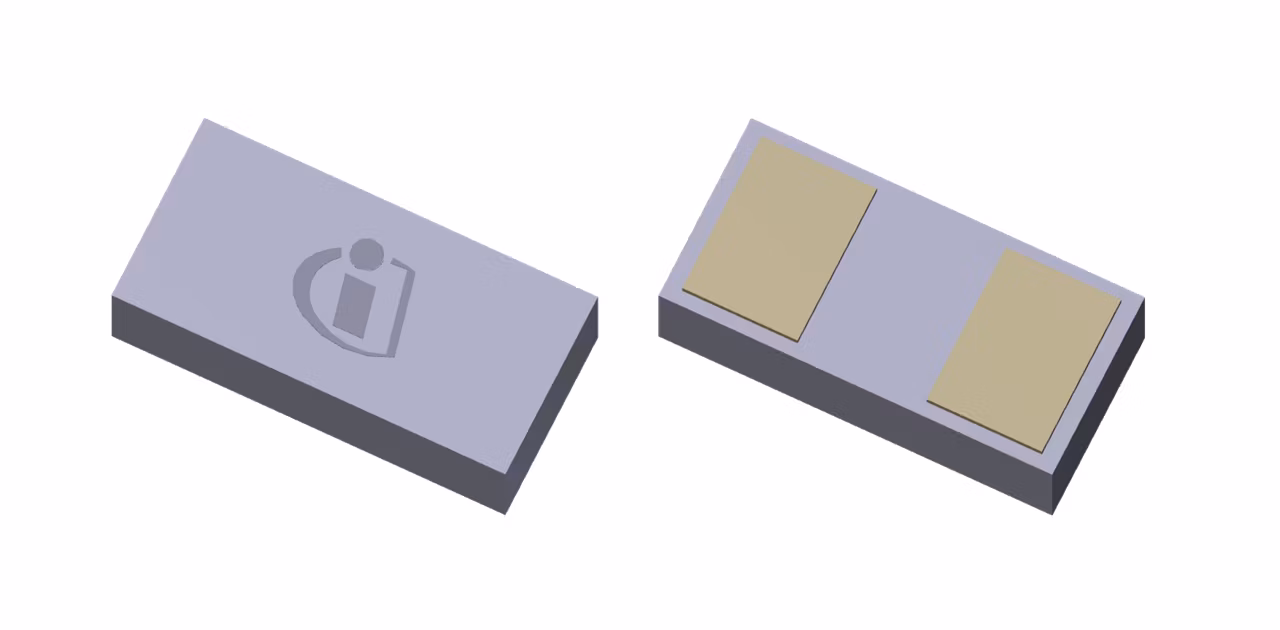

Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)Bi-directional, 18 V, 0.2 pF, 0201, RoHS and Halogen Free compliant

Infineon Technologies ESD144-B1-W0201 Product Info

16 April 2026 0

Parameters

CL

0.2 pF

CL max

0.35 pF

Green

RoHS compliant, Halogen free

IEFT

50 A

IPP

3.5 A

IR max

50 nA

IR

1 nA

Protected Lines

1

Rdyn (forward)

0.58 Ω

Rdyn (reverse)

0.58 Ω

Vcl typ. reverse (TLP 16A)

12.5

Vcl typ. reverse (@16A)

12 V

VESD range

-18 kV to 18 kV

VWM max

18 V

VWM min

-18 V

Apps

Mobile device and smartphone solutions, Health and lifestyle, Consumer Wearables

Features

  • ESD / transient protection according to:
  • IEC61000-4-2 (ESD): ±18 kV (air / contact discharge)
  • IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)
  • IEC61000-4-5 (Surge): ±3.5 A (8/20 μs)
  • Bi-directional working voltage up to: VRWM = ±18 V
  • Line capacitance: CL = 0.2 pF (typical) at f = 1 MHz
  • Clamping voltage: VCL = 12.5 V (typical) at ITLP = 16 A with RDYN = 0.58 Ω (typical)
  • Very low reverse current: IR < 1 nA (typical)
  • Small form factor SMD size 0201 and low profile (0.58 x 0.28 x 0.15 mm³)
  • Bi-directional and symmetric I/V characteristics for optimized design / assembly
