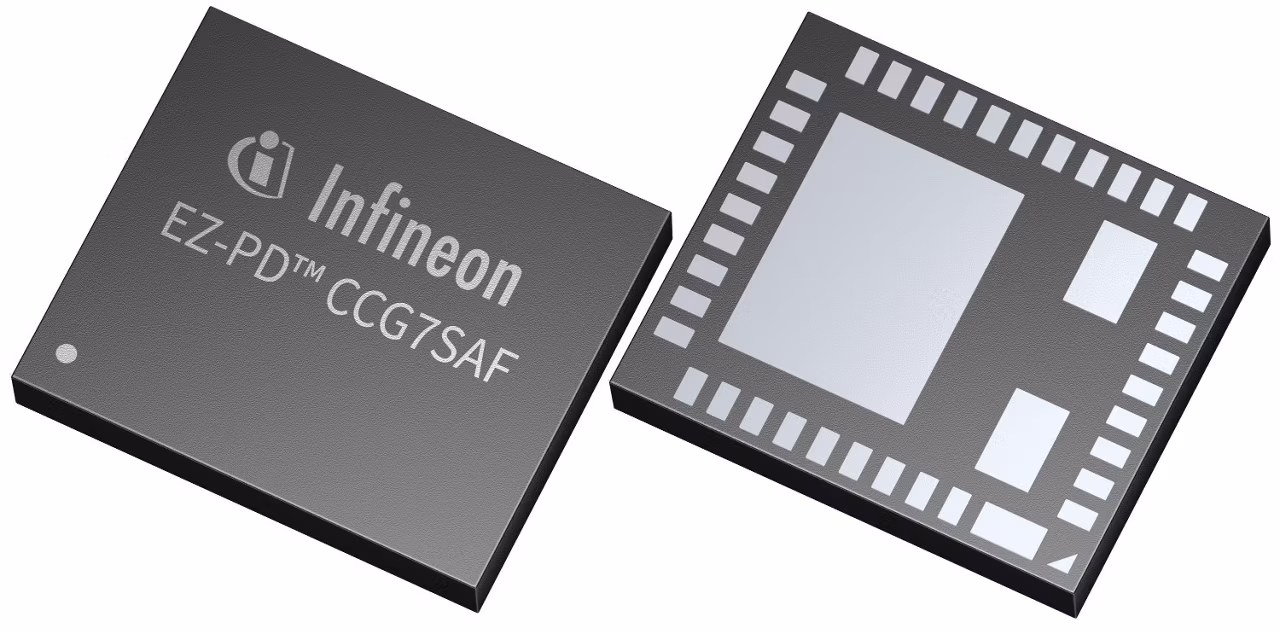

CYPD7198-39BFXST
  • CYPD7198-39BFXST

CYPD7198-39BFXST

Active and preferred

EZ-PD™ CCG7SAF is a highly integrated USB Type-C Power Delivery solution for automotive applications, featuring a buck-boost controller, 2 FETs, and a 32-bit Arm® Cortex®-M0 processor enabling custom system management functions like power throttling and temperature monitoring.

Infineon Technologies CYPD7198-39BFXST Product Info

16 April 2026 0

Parameters

# of ports

Single

Applications

RSE

Family

EZ-PD™ CCG7SAF

Flash

128 Byte

Operating Temperature range

-40 °C to 105 °C

Operating Voltage range

4 V to 24 V

Package Type

39-lead LGA

Peak Reflow Temp

260 °C

Processor Type

Arm® Cortex®-M0

Product Category

PD controllers

Product Description

Automotive single-port USB Type-C PD with a buck-boost controller and FETs

Protection features (OVP, OCP, SCP and ESD)

Y

Software Tools

ModusToolbox™

Temperature grade

Automotive Grade-S

USB Standard

USB-PD 3.2

VBUS Short Protection

Y

VCONN FET

Y

Features

  • Supports 1 USB PD port
  • Compliant with USB PD 3.1 with PPS
  • Configurable resistors Rp and Rd
  • Integrated 100 mW VCONN power supply
  • 1x buck boost controller + 2x FETs
  • 1x legacy/proprietary charging block
  • Sytem-level fault protection
  • Integrated oscillator
  • Up to 13 GPIOs
  • 48 MHz Arm® Cortex®-M0 CPU
  • 39-pin LGA, wettable flank, AEC-Q100
  • Packing: tape and reel

Description

  • Dynamic load-sharing algorithm
  • Multi-step output power throttling
  • Moisture detection
  • Programmable MCU, Flash, GPIOs and LIN
