T4021N52TOH
  • T4021N52TOH

T4021N52TOH

Active and preferred

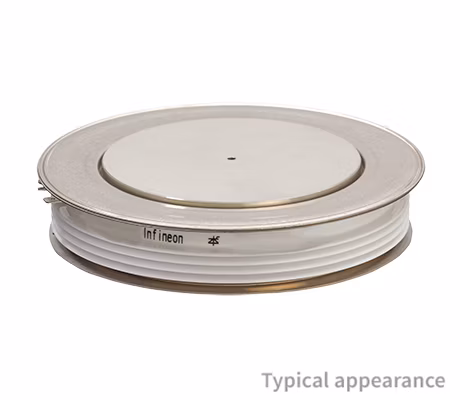

The T4021N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 172mm and a height of 35mm.

Infineon Technologies T4021N52TOH Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

90 to 130

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 172mm height 35mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

3880/85

ITAVM

3880 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

100000

ITSM

100000 A

rT [mΩ] (@Tvj max) max

0.145

RthJC [K/kW] (@180° el sin) max

4.5

tq [µs]

550

Tvj [°C] max

125

VDRM / VRRM [V]

5200

VDRM/ VRRM (V)

5200 V

VT/IT [V/kA] (@Tvj max)

1.80/6.0

VT0 [V] (@Tvj max) max

0.93

∫I2dt [A²s · 103] (@10ms, Tvj max)

50000

Apps

Automotive

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
