IDWD40G120C5

Active and preferred

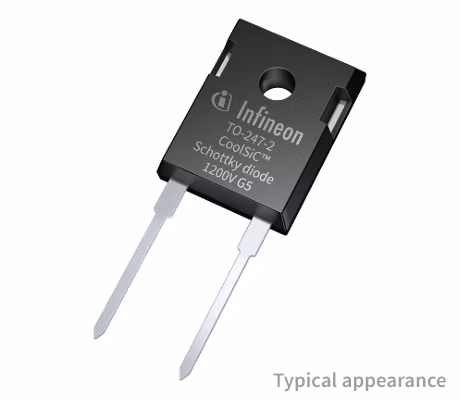

CoolSiC™ Schottky diode 1200 V, 40 A G5 in a TO-247 real 2-pin package, for easy exchange of bipolar Si diodes. The expanded 8.7 mm creepage and clearance distances offer extra safety in high-pollution environments. Combined with a Si IGBT or super-junction MOSFET a CoolSiC™ diode raises efficiency up to 1% compared to next best Si diode alternative. The output power of PFC and DC-DC stages can thus be increased, by 40% or more.

Infineon Technologies IDWD40G120C5 Product Info

16 April 2026 0

Parameters

I(FSM) max	290 A
IF max	109 A
IR	23 A
Package	PG-TO247-2
Ptot max	402 W
QC	202 nC
Qualification	Industrial
RthJC	0.27 K/W
VF	1.4 V

Apps

EV charging, DIN rail power supply solutions, Servo motor drive and control, Photovoltaic, 1-phase string inverter solutions, Power conversion, Uninterruptible power supplies (UPS)

Features

No reverse recovery current
No forward recovery voltage
Temp.-independ. switching behavior
Low forward voltage*
*even at high operating temperature
Tight forward voltage distribution
High surge current capability
