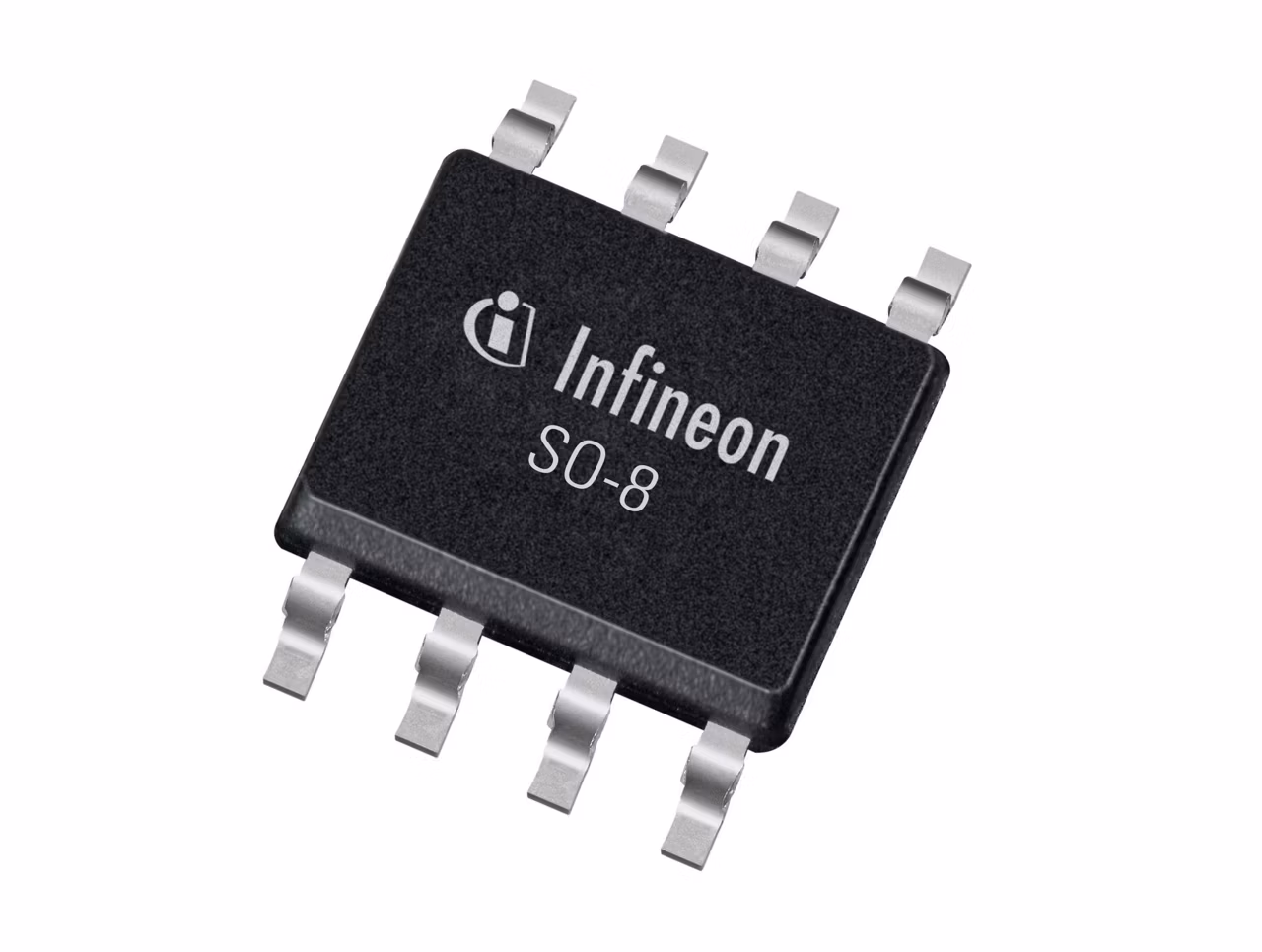

BSO203SP H
  • BSO203SP H

BSO203SP H

Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Infineon Technologies BSO203SP H Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.38

Ciss

2500 pF

Coss

820 pF

ID (@25°C) max

9 A

IDpuls max

-36 A

Operating Temperature max

150 °C

Operating Temperature min

-55 °C

Package

SO-8

Polarity

P

Ptot max

2.35 W

QG

-33.6 nC

RDS (on) (@2.5V) max

34 mΩ

RDS (on) (@4.5V) max

21 mΩ

RDS (on) (@4.5V LL) max

21 mΩ

Rth

110 K/W

VDS max

-20 V

VGS(th)

-0.9 V

Features

  • Enhancement mode
  • Normal level, logic level or super logic level
  • Avalanche rated
  • Pb-free lead plating
  • RoHS compliant
