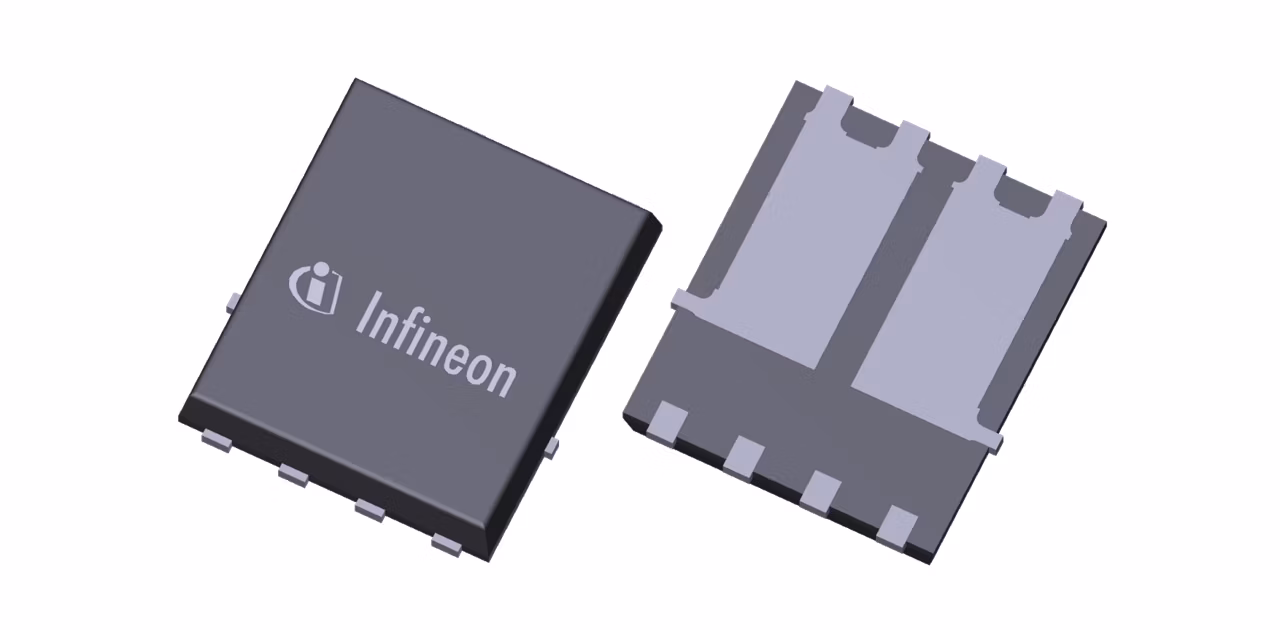

BSC150N03LD G
  • BSC150N03LD G

BSC150N03LD G

Active

Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Infineon Technologies BSC150N03LD G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.28

Ciss

850 pF

Coss

350 pF

ID (@25°C) max

20 A

IDpuls max

80 A

Operating Temperature range

-55 °C to 150 °C

Package

SuperSO8 5x6

Polarity

N+N

Ptot max

26 W

QG (typ @4.5V)

4.8 nC

QG (typ @10V)

10 nC

RDS (on) (@10V) max

15 mΩ

RDS (on) (@4.5V) max

22 mΩ

RDS (on) (@4.5V LL) max

22 mΩ

RthJC max

4.9 K/W

Rth

4.9 K/W

Special Features

Logic Level

VDS max

30 V

VGS(th) range

1 V to 2.2 V

VGS(th)

1.74 V

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance
  • Easy to design-in

Description

  • Increased battery lifetime
  • Improved EMI makes ext snubbers obsolete
  • Saving costs
  • Space saving
  • Reducing power losses
