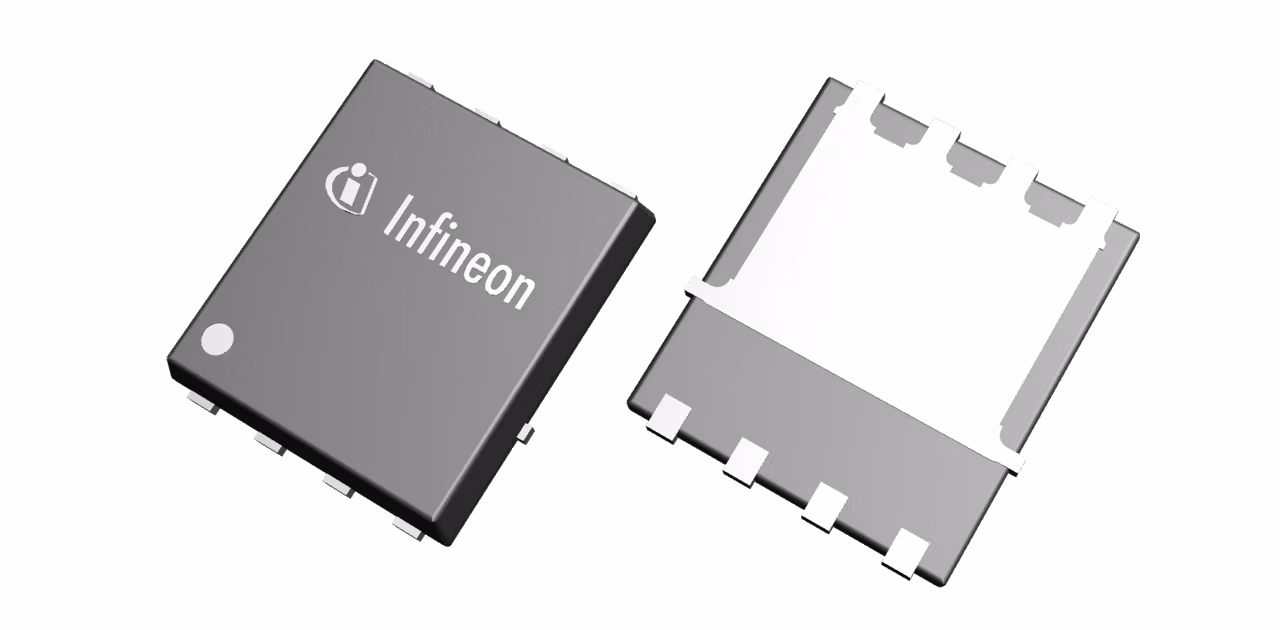

BSC059N04LS6
  • BSC059N04LS6

BSC059N04LS6

Active and preferred

The OptiMOS™ 6 power MOSFET 40V family is optimized for a variety of applications and circuits, such as synchronous rectification in switched mode power supplies (SMPS) in servers, desktop PCs, wireless chargers, quick chargers and ORing circuits. Improvements in on-state resistance (RDS(on)) and figure of merits (FOM - RDS(on) x Qg and Qgd) enable designers to increase efficiency, allowing easier thermal design and less paralleling, leading to system cost reduction.

Infineon Technologies BSC059N04LS6 Product Info

16 April 2026 12

Parameters

Budgetary Price €/1k

0.27

ID (@ TC=25°C) max

59 A

ID (@25°C) max

59 A

IDpuls max

236 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

38 W

QG (typ @4.5V)

4.6 nC

QG (typ @10V)

9.4 nC

RDS (on) (@10V) max

5.9 mΩ

RDS (on) (@4.5V) max

8.4 mΩ

Special Features

Logic Level

VDS max

40 V

VGS(th) range

1.3 V to 2.3 V

VGS(th)

1.78 V

Apps

AI and data center

Features

  • Compared to alternative products:
  • RDS(on) reduced by 30%
  • Improved FOM Qg x RDS(on) by 29%
  • Improved FOM Qgd x RDS(on) by 46%
  • Optimized for synchronous rectification
  • Suited for ORing circuits
  • RoHS compliant
  • halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • Very low voltage overshoot
  • Reduced need for snubber circuit
  • System cost reduction
