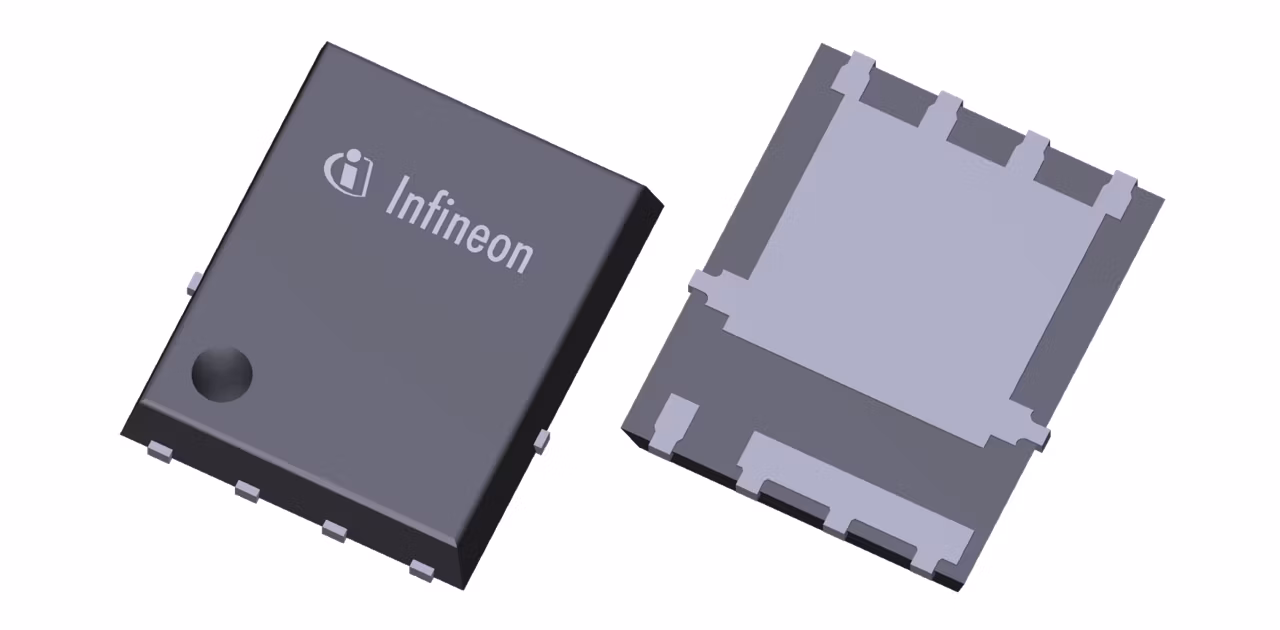

BSC014N04LSI
  • BSC014N04LSI

BSC014N04LSI

Active and preferred

New 40V and 60V product families, feature not only the industry’s lowest R DS(on) but also a perfect switching behavior for fast switching applications. 15% lower R DS(on) and 31% lower figure of merit (R DS(on) x Q g) compared to alternative devices has been realized by advanced thin wafer technology.

Infineon Technologies BSC014N04LSI Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.59

Ciss

4000 pF

Coss

1200 pF

ID (@25°C) max

195 A

IDpuls max

780 A

Operating Temperature range

-55 °C to 150 °C

Package

SuperSO8 5x6

Polarity

N

Ptot max

96 W

QG (typ @4.5V)

29 nC

RDS (on) (@10V) max

1.45 mΩ

RDS (on) (@4.5V) max

2 mΩ

RDS (on) (@4.5V LL) max

2 mΩ

Rth

1.3 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode , Fused leads

VDS max

40 V

VGS(th) range

1.2 V to 2.2 V

VGS(th)

1.68 V

Apps

Medium voltage IBC (48 V), Domain controller for ADAS & autonomous driving, DIN rail power supply solutions, Medium voltage (MV) drive

Features

  • Optimized for synchronous rectification
  • 15% lower RDSon than others
  • 31% better FOM over similar devices
  • Integrated Schottky-like diode
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
Very low voltage overshoot
