BGSX24MU16
  • BGSX24MU16

BGSX24MU16

The BGSX24MU16 RF CMOS switch is specifically designed for LTE and WCDMA quadruple antenna applications. This DP4T offers low insertion loss and low harmonic generation. The switch is controlled via a MIPI RFFE controller. The on-chip controller allows power-supply voltages from 1.65 to 1.95 V. The switch features direct-connect-to-battery functionality and DC-free RF ports. Unlike GaAs technology, external DC blocking capacitors at the RF Ports are only required if DC voltage is applied externally. The BGSX24MU16 RF Switch is manufactured in Infineon’s patented MOS technology, offering the performance of GaAs with the economy and integration of conventional CMOS including the inherent higher ESD robustness. The device has a very small size of only 2.0 x 2.0 mm2 and a maximum thickness of 0.59 mm.

Infineon Technologies BGSX24MU16 Product Info

16 April 2026 0

Parameters

Control Interface

MIPI

Frequency Range

0.1 - 5.0 GHz

Size

2.0 x 2.0 mm²

Switch Type

DP4T

Apps

On-board charging (OBC), Automotive telematics control unit (TCU), Mobile device and smartphone solutions, Semiconductor solutions for home entertainment applications

Features

  • RF CMOS DP4T antenna cross switch with power handling capability of up to 36.5 dBm
  • Suitable for multi-mode LTE and WCDMA quadruple antenna applications
  • Low insertion loss and harmonics generation
  • 0.1 to 5.0 GHz frequency coverage
  • High port-to-port-isolation
  • No blocking capacitors required if no DC applied on RF lines
  • Integrated MIPI RFFE interface operating in 1.65 to 1.95V voltage range
  • Software programmable MIPI RFFE USID

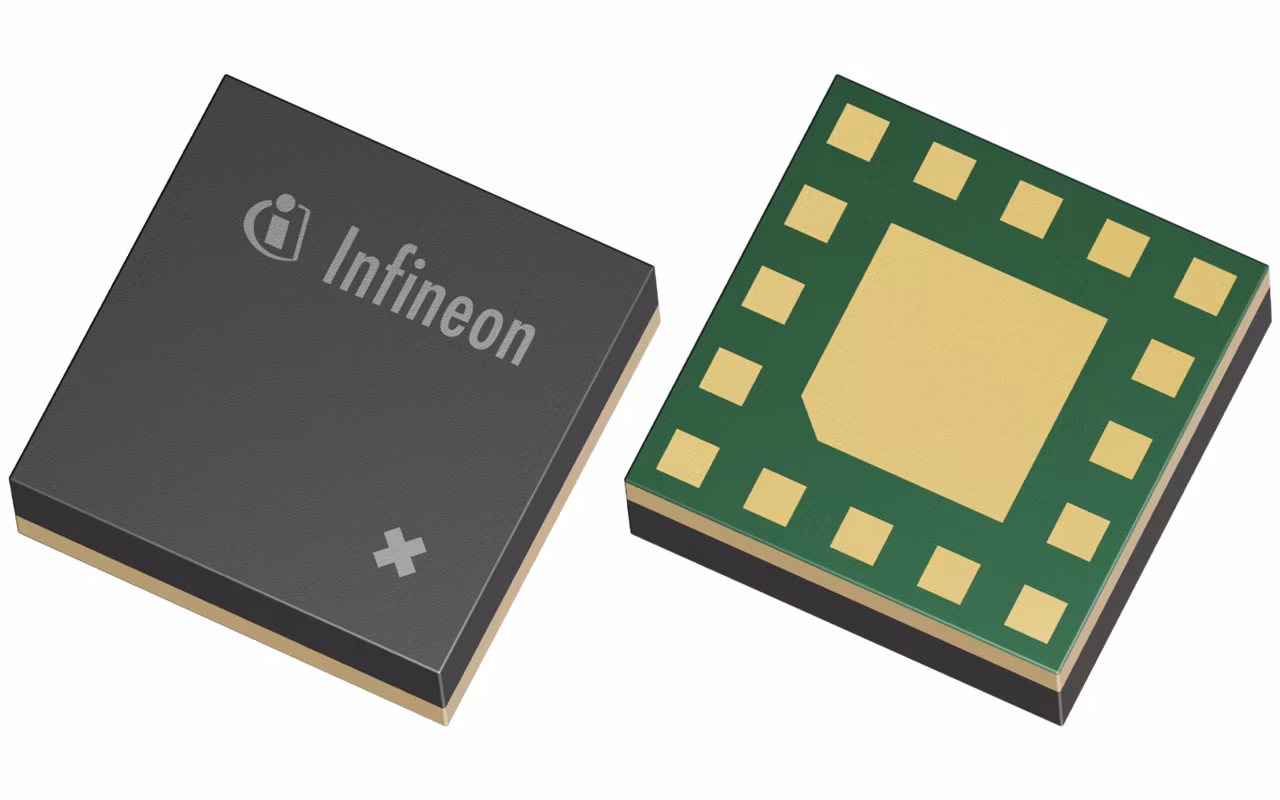

  • Leadless and halogen free package PG-ULGA-16-1 with lateral size of 2.0 mm x 2.0 mm and thickness of 0.59 mm
  • No power supply decoupling required
  • High EMI robustness
  • RoHS and WEEE compliant package
