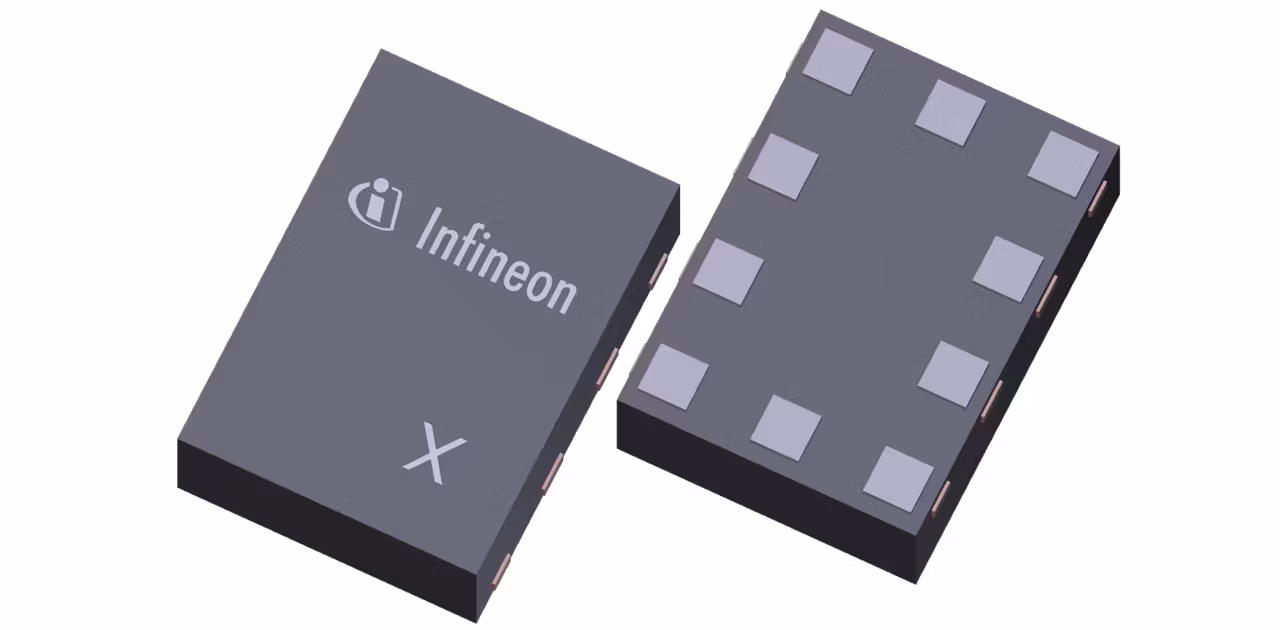

BGSA14M2N10
  • BGSA14M2N10

BGSA14M2N10

The BGSA14M2N10 is a very small single-pole four-throws (SP4T) Antenna Tuning switch optimized for RF applications up to 7.125GHz. Its MIPI RFFE digital control interface allows easy implementation and best flexibility when operated in cellular mobile RF Front-End designs. The BGSA14M2N10 includes 4 low RON ports making it ideal for high Q tuning applications. Thanks to its high RF voltage ruggedness, it is suited for switching any reactive devices such as inductors and capacitors in RF matching circuits without significant losses.

Infineon Technologies BGSA14M2N10 Product Info

16 April 2026 0

Parameters

COFF

160 fF

Control Interface

MIPI 2.1

Frequency Range

0.4 – 7.125 GHz

Halogen-free

Yes

RON

0.85 Ω

Size

0.95 x 1.3 mm²

Switch Type

SP4T

VRFmax

45 V

Apps

Mobile device and smartphone solutions, Consumer Wearables

Features

  • Ultra low RON resistance of 0.85 Ω in ON state
  • Low COFF capacitance of 160 fF in OFF state
  • High RF operating peak voltage handling of 45 V in OFF state
  • MIPI RFFE 2.1 control interface
  • Extremely low current consumption of 22 µA
  • 4 default USID addresses via external USID_SEL pin
  • Small form factor 0.95 mm x 1.3 mm (MSL1, 260 °C per JEDEC J-STD-020)
