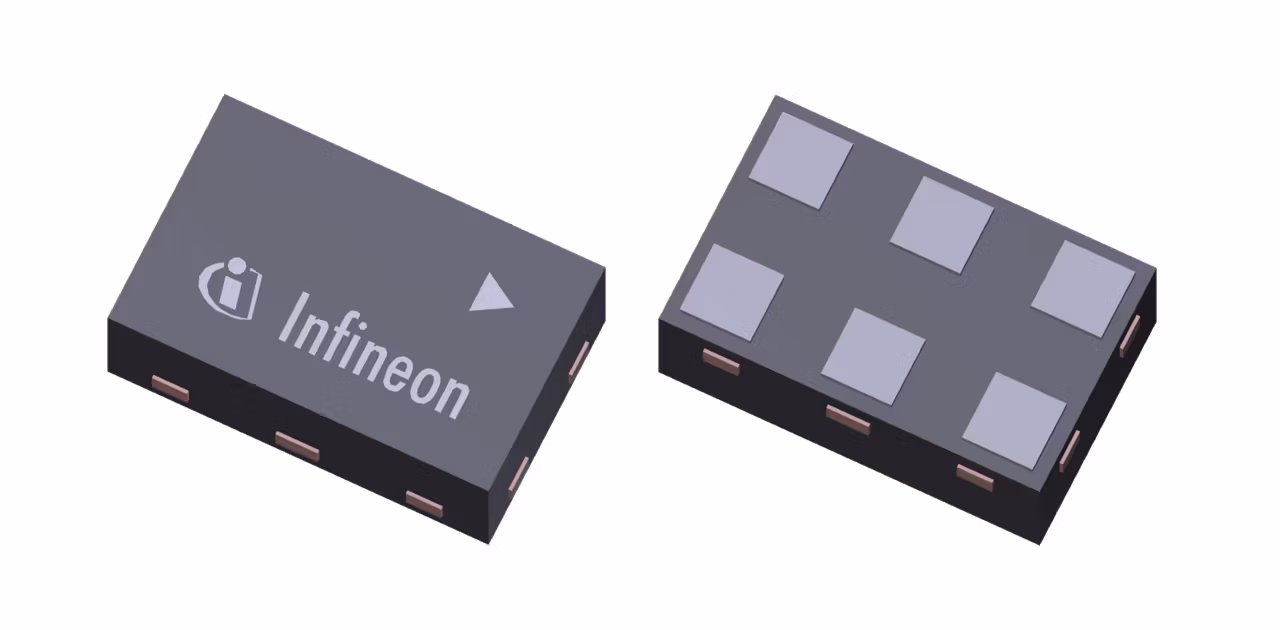

BGC100GN6
  • BGC100GN6

BGC100GN6

Active and preferred

The BGC100GN6 bi-directional coupler IC is designed for 2G/3G/4G RF front end applications. The device contains a bidirectional coupler operating in one or multiple bands within 0.6 GHz to 2.7 GHz frequency range. The coupled output contains a low-pass filter for 5 GHz ISM blockers suppression. The coupler offers low insertion loss and high directivity. The coupler is controlled via a GPIO pin. No external power supply blocking or RF decoupling capacitors are required. The BGC100GN6 is a fully integrated device deploying Infineon high volume RF-CMOS technology. The device has a very small size of only 1.1 x 0.7mm and a maximum height of 0.4 mm.

Infineon Technologies BGC100GN6 Product Info

16 April 2026 0

Parameters

Control Interface

GPIO

Frequency Range

0.6 - 2.7 GHz

Size

1.1 x 0.7 mm²

Switch Type

Coupler

Apps

On-board charging (OBC), Consumer electronics, Mobile device and smartphone solutions, Semiconductor solutions for home entertainment applications

Features

  • Fully integrated coupler in RF CMOS
  • Bi-directional coupler
  • Fitted for feedback receivers to accomplish closed loop power control and antenna tuning
  • Frequency range: 0.6 to 2.7 GHz
  • Designed for low insertion loss and high directivity
  • Integrated low-pass filter for 5GHz WiFi jammers suppression
  • GPIO controlled
  • Supply voltage range: 1.6 to 3.4V
  • Small form factor 1.1mm x 0.7mm
  • RoHS and WEEE compliant package
  • Product Validation: Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
