2EDL05I06PF
  • 2EDL05I06PF

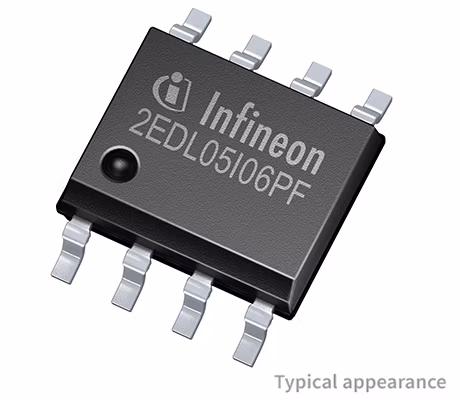

2EDL05I06PF

Active and preferred

EiceDRIVER™ Compact - Optimized 600V half bridge gate driver IC with LS-SOI technology to control IGBTs

Infineon Technologies 2EDL05I06PF Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

Half-Bridge

Input Vcc range

13 V to 17.5 V

Isolation Type

Functional levelshift SOI (Silicon On Insulator)

Output Current (Sink)

0.7 A

Output Current (Source)

0.36 A

Qualification

Industrial

Turn Off Propagation Delay

400 ns

Turn On Propagation Delay

420 ns

VBS UVLO (On)

11.6 V

VBS UVLO (Off)

10.7 V

VCC UVLO (On)

12.5 V

VCC UVLO (Off)

11.6 V

Voltage Class

600 V

Apps

Medium voltage IBC (48 V), Home appliances, Microwave ovens, Refrigerators and freezers

Features

  • Individual control circuits
  • Undervoltage supply detect. filter
  • All inputs clamped by diodes
  • Off line gate clamping function
  • Asym. undervolt. lockout thresholds
  • Insensitivity of the bridge output
  • *to neg. transient voltages < -50 V
  • Ultra fast bootstrap diode
