S25HL512TFANHM010
  • S25HL512TFANHM010

S25HL512TFANHM010

Active and preferred

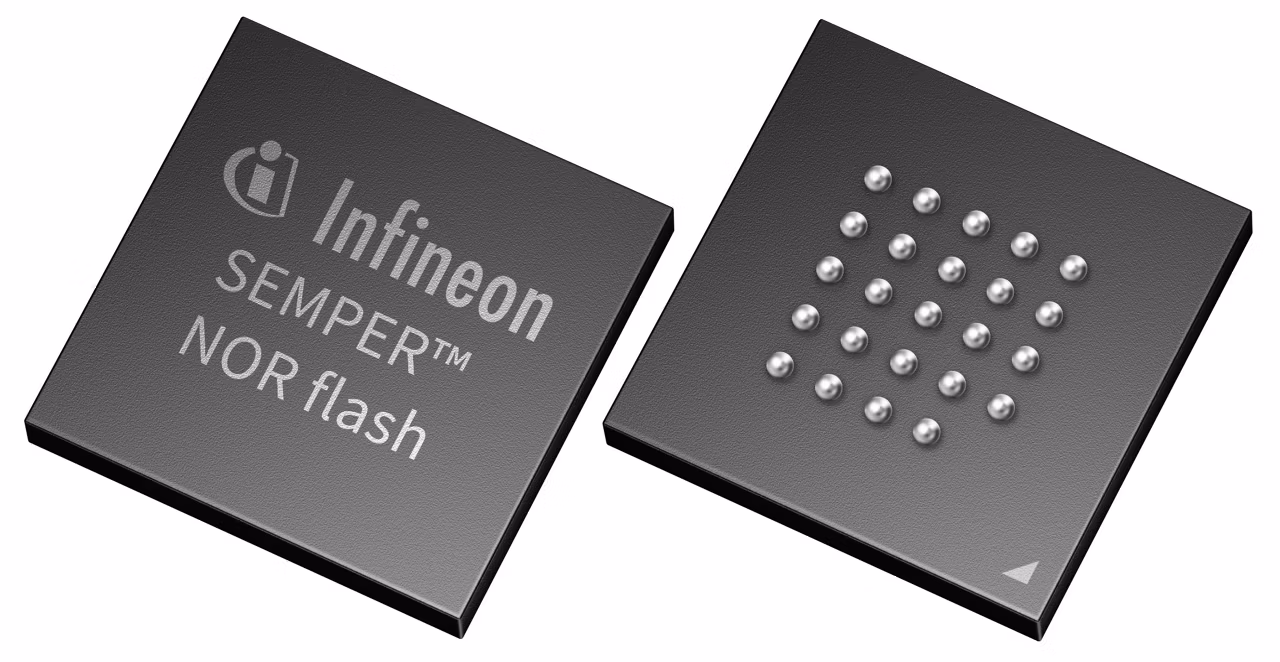

The S25HL512TFANHM010 is a 512 Mb SEMPER™ NOR Flash memory using Infineon's 45-nm MIRRORBIT™ technology. Designed for automotive and industrial applications with ISO 26262 ASIL-B compliance, it offers flexible sector architectures and supports Quad SPI, Dual SPI, and standard SPI interfaces up to 102 MBps. Operating at 2.7 V to 3.6 V, endurance reaches 1,280,000 cycles. Integrated ECC, CRC, SafeBoot, and advanced sector protection ensure robust data integrity and security.

Infineon Technologies S25HL512TFANHM010 Product Info

16 April 2026 10

Parameters

Classification

ISO 26262-compliant

Density

512 MBit

Family

HL-T

Interface Bandwidth

102 MByte/s

Interface Frequency (SDR/DDR) (MHz)

166 / 102

Interfaces

Quad SPI

Lead Ball Finish

Matte Tin Plating

Operating Temperature range

-40 °C to 125 °C

Operating Voltage range

2.7 V to 3.6 V

Operating Voltage

3 V

Peak Reflow Temp

260 °C

Planned to be available until at least

2037

Publish in NPSG

N

Publish in PSG

N

Qualification

Automotive

Features

  • 45-nm MIRRORBIT™ stores 2 bits/cell
  • Uniform and hybrid sector architectures
  • 256/512-byte page programming buffer
  • 1024-byte OTP secure silicon array
  • Quad SPI up to 102 MBps (DDR, 102 MHz)
  • Dual SPI up to 41.5 MBps (SDR, 166 MHz)
  • SPI up to 21 MBps (SDR, 166 MHz)
  • Functional safety: ISO26262 ASIL B compliant
  • Endurance Flex: high-endurance/retention
  • Data integrity CRC and built-in ECC (SECDED)
  • SafeBoot for init failure/config corruption
  • Legacy and advanced sector protection

Description

  • High density, reliable storage in small
  • Flexible sectoring for varied application
  • Fast programming for efficient data handling
  • Secure OTP for device authentication
  • High-speed Quad/Dual SPI for rapid data
  • Industry-leading functional safety for
  • Partitioning optimizes endurance
  • Robust data integrity with CRC and ECC
  • SafeBoot ensures system recovery and uptime
  • Advanced protection prevents unauthorized
  • Instant boot accelerates system startup
  • Hardware reset enables reliable system
