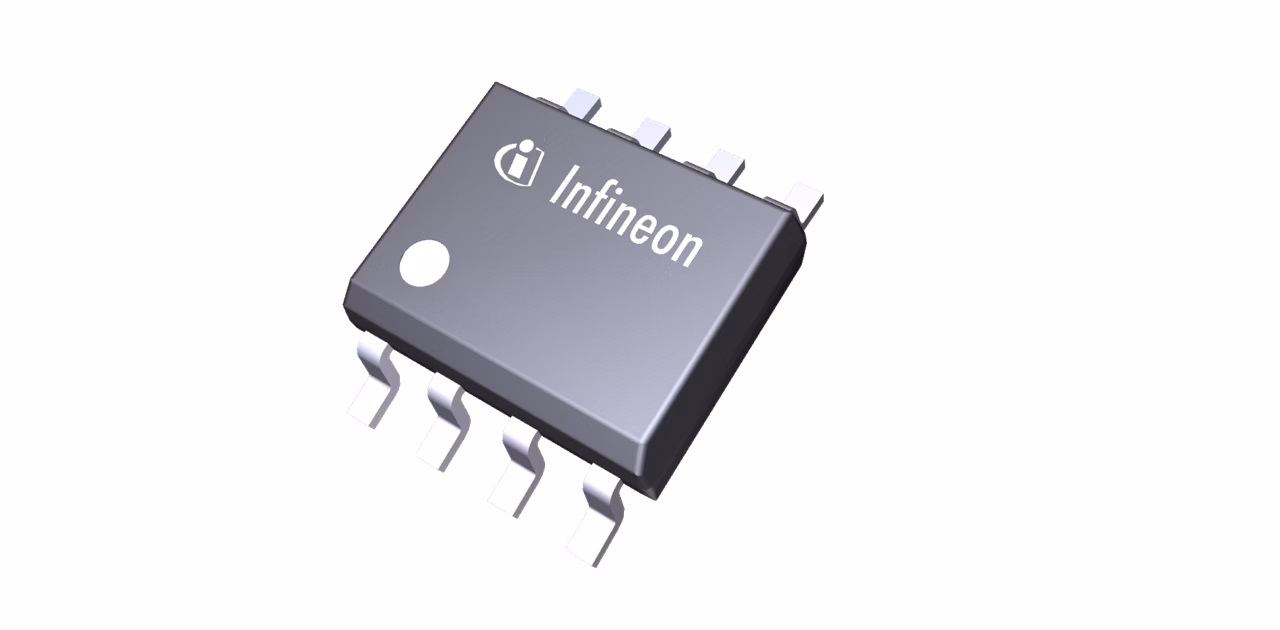

1EDI60N12AF

Active and preferred

Infineon Technologies 1EDI60N12AF Product Info

16 April 2026 0

Channels	1
Configuration	High-side
Input Vcc range	3.1 V to 17 V
Isolation Type	Galvanic isolation - Functional
Output Current (Source)	10 A
Output Current (Sink)	9.4 A
PDout	400 mW
Product Name	1EDI60N12AF
Qualification	Industrial
RDSON_H(max)	1.4 Ω
RDSON_H(typ)	0.75 Ω
RDSON_L (max)	1.7 Ω
RDSON_L(typ)	0.75 Ω
RthJA	165 K/W
Turn Off Propagation Delay	125 ns
Turn On Propagation Delay	120 ns
VBS UVLO (Off)	8.5 V
VBS UVLO (On)	9.1 V
VCC UVLO (Off)	2.75 V
VCC UVLO (On)	2.85 V
Voltage Class	1200 V

Medium voltage IBC (48 V), EV charging, General purpose motor drive, Photovoltaic, Industrial robots, Uninterruptible power supplies (UPS)

Tailored for all 650 V CoolMOS™ C7, P6 and other super junction MOS transistors
High switching frequency applications as SMPS, up to 4 MHz
Integrated filters reduce the need of external filters
Suitable for operation at high ambient temperature and in fast switching applications
No need to adapt signal voltage levels between μController and driver
Active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power
Short-circuit clamping to limit the gate voltage during short circuit
