1EDI40I12AH
  • 1EDI40I12AH

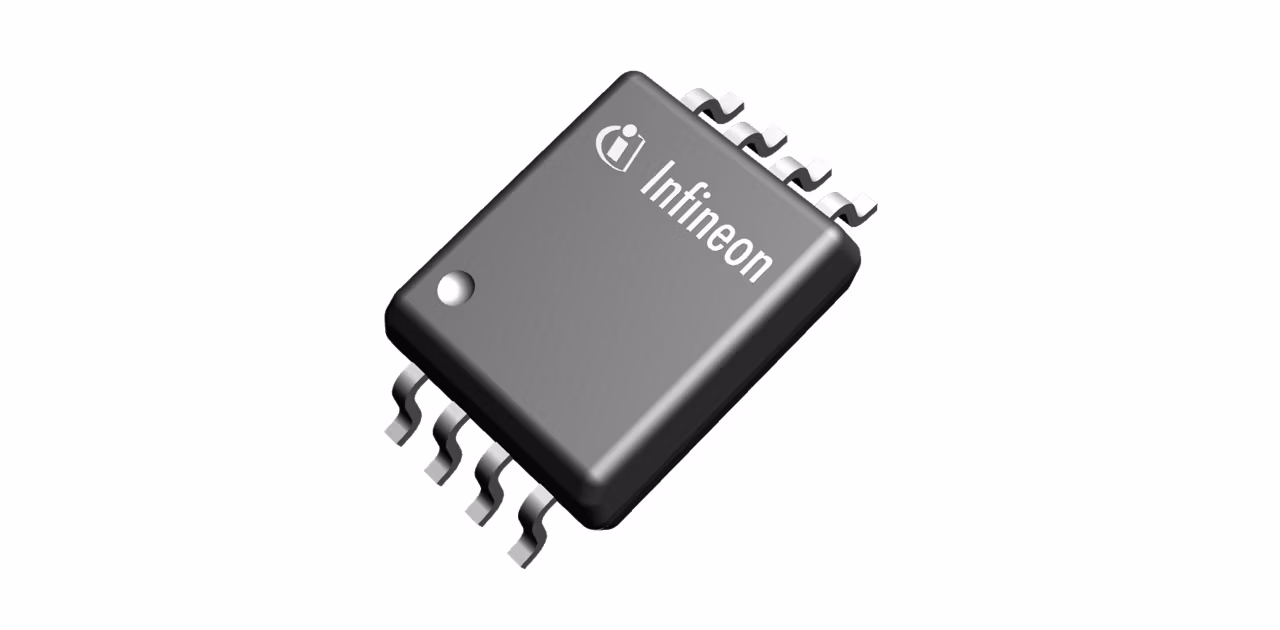

1EDI40I12AH

EiceDRIVER™ 1200 V high-side gate driver IC with typical 7.5 A source and 6.8 A sink current in a wide-body DSO-8 package with CT technology for IGBT Modules .For higher isolation rating, higher current, shorter propagation delay, check out our newly released X3 Compact family , 1ED3124MU12H . The DSO-8 150 mil narrow body version with great price performance ratio is also available: 1EDI40I12AF

Infineon Technologies 1EDI40I12AH Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Source)

7.5 A

Output Current (Sink)

6.8 A

PDout

400 mW

Qualification

Industrial

RDSON_H(max)

2.2 Ω

RDSON_H(typ)

1.13 Ω

RDSON_L (max)

2.7 Ω

RDSON_L(typ)

1.13 Ω

RthJA

165 K/W

Turn Off Propagation Delay

300 ns

Turn On Propagation Delay

300 ns

VBS UVLO (Off)

11.1 V

VBS UVLO (On)

12 V

VCC UVLO (Off)

2.75 V

VCC UVLO (On)

2.85 V

Voltage Class

1200 V

Apps

EV charging, Photovoltaic, Uninterruptible power supplies (UPS)

Features

  • Coreless transformer isolated
  • 4 A rail-to-rail outputs
  • 300 mil wide-body package
  • Package with 8 mm creepage distance
  • Separate source/sink outputs
