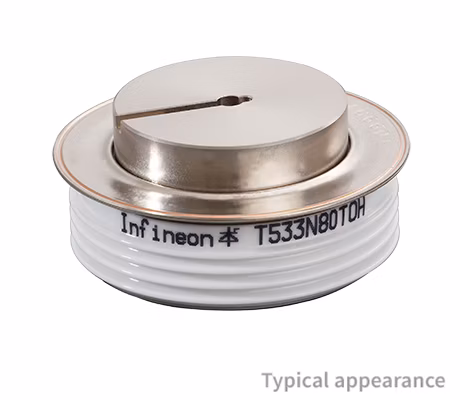

T533N80TOH PR
  • T533N80TOH PR

T533N80TOH PR

Active and preferred

Light Triggered Thyristor discs 8000 V, 540 A with a dia of 76 mm and a height of 35 mm in high reliable, robust and hermetic sealed ceramic housing.

Infineon Technologies T533N80TOH PR Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

15 to 24

Configuration

Light Triggered Phase Control Thyristor

Housing

Disc dia 76mm height 35mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

540/85

ITAVM

540 (85 ° el sin)

ITSM [A] (@10ms, Tvj max)

10500

ITSM

10500 A

rT [mΩ] (@Tvj max) max

1.47

RthJC [K/kW] (@180° el sin) max

20

tq [µs]

650

Tvj [°C] max

120

VDRM / VRRM [V]

8000

VDRM/ VRRM (V)

8000 V

VT/IT [V/kA] (@Tvj max)

2.75/1.0

VT0 [V] (@Tvj max) max

1.26

∫I2dt [A²s · 103] (@10ms, Tvj max)

550

Apps

Power transmission and distribution, Motor control

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High case non-rupture current
  • High turn-on di/dt capability
  • High surge current capability
  • High di/dt capability
  • High dv/dt capability
