1ED44175N01B

Active and preferred

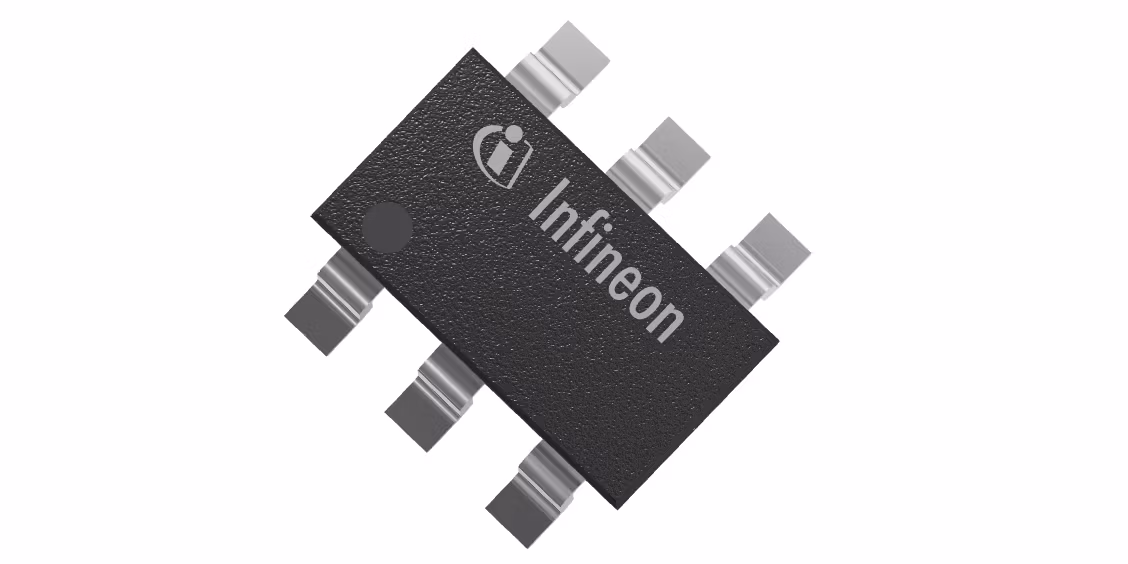

EiceDRIVER™ 25 V single-channel low-side non-inverting gate driver IC with typical 2.6 A source and sink currents in a tiny 6-lead PG-SOT23 package enabled by combining the fault output and enable functions into a single pin. It offers cost and space savings by an integrated comparator and enables a robust monolithic design through our proprietary latch immune CMOS technologies while realizing best-in-class fault reporting accuracy .

Infineon Technologies 1ED44175N01B Product Info

16 April 2026 0

Parameters

Channels	1
Configuration	Low-side
Input Vcc range	12.7 V to 20 V
Isolation Type	Non-isolated
Output Current (Sink)	2.6 A
Output Current (Source)	2.6 A
Package	PG-SOT23-6
Product Name	1ED44175N01B
Qualification	Industrial
Turn Off Propagation Delay	50 ns
Turn On Propagation Delay	50 ns
VBS UVLO (Off)	11 V
VBS UVLO (On)	11.9 V
VCC UVLO (Off)	11 V
VCC UVLO (On)	11.9 V
Voltage Class	25 V

Apps

Automotive e-compressor - high-voltage, Home appliances, Refrigerators and freezers, Servo motor drive and control, Commercial HVAC system, Residential air conditioning, Power conversion

Features

-0.246 V over-current threshold
Over-current detection
Single pin fault output & enable
Programmable fault clear time
Wide supply voltage 25 V V_cc max
Under voltage lockout for IGBTs
CMOS Schmitt-triggered inputs
3.3, 5 & 15 V input logic compatib.
Output in phase with input
-10 Vdc neg. input capab. of OCPpin
3 kV ESD HBM
