1ED3890MC12M
  • 1ED3890MC12M

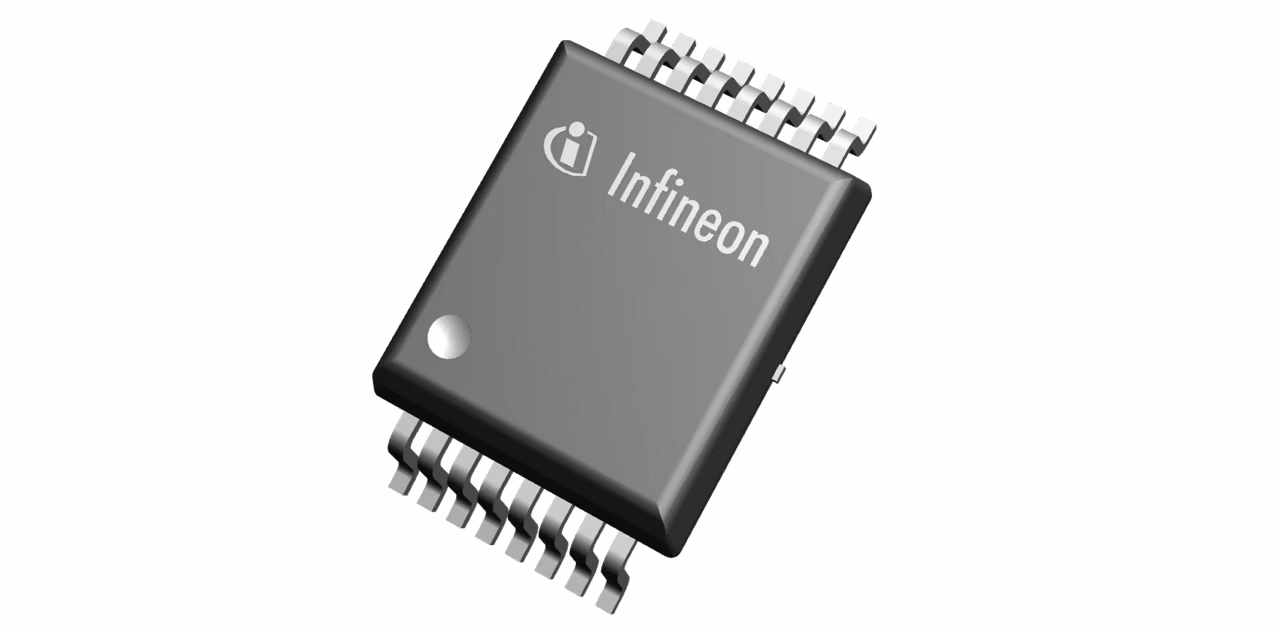

1ED3890MC12M

Active and preferred

EiceDRIVER™ Enhanced single-channel highly flexible isolated gate driver with ±9 A typical sinking and sourcing peak output current in small space-saving DSO-16 fine pitch wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It belongs to the EiceDRIVER™ Enhanced X3 digital family and offers adjustable control and protection functions including DESAT, Soft-Off, UVLO, Miller clamp, two level turn off and Fault.

Infineon Technologies 1ED3890MC12M Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3 V to 6.5 V

Isolation Type

Galvanic isolation - Reinforced

Output Current (Sink)

7.5 A

Output Current (Source)

11 A

Package

PG-DSO-16-33

PDout

700 mW

Product Name

1ED3890MC12M

Qualification

Industrial

RDSON_H(max)

0.75 Ω

RDSON_H(typ)

0.38 Ω

RDSON_L (max)

0.55 Ω

RDSON_L(typ)

0.28 Ω

RthJA

122 K/W

Turn Off Propagation Delay

236 ns

Turn On Propagation Delay

244 ns

VBS UVLO (On)

12 V

VBS UVLO (Off)

11 V

VCC UVLO (On)

2.95 V

VCC UVLO (Off)

2.8 V

Voltage Class

2300 V

Apps

Server power supply units (PSU), Automotive, EV charging, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

  • Single channel isolated gate driver
  • For up to 2300 V Si & SiC switches
  • 2300 V funct. offset volt. capable
  • ±9 A typ sink & source peak output
  • 40 V absolute max. output voltage
  • Separate source and sink outputs
  • Active Miller clamp
  • Precise VCEsat detection (DESAT)
  • Soft turn-off
  • FLT and RDY status signaling MCU
  • Parameter adjust. from input side
  • Active Miller clamp
