1ED3321MC12N
  • 1ED3321MC12N

1ED3321MC12N

Active and preferred

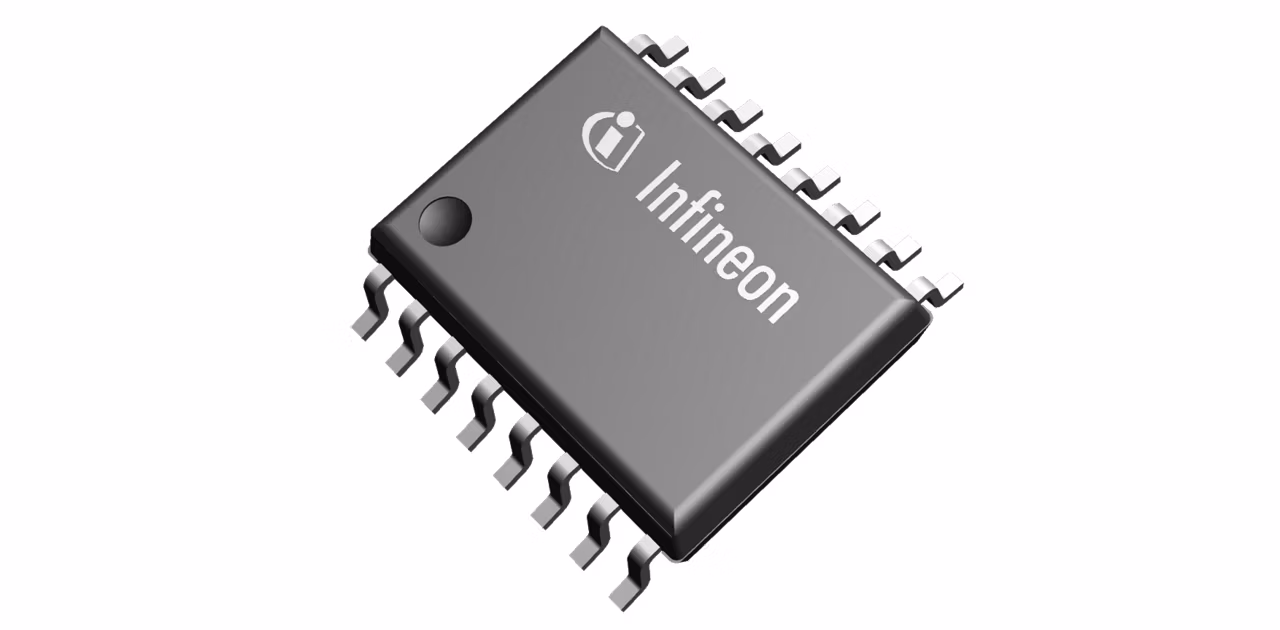

EiceDRIVER™ Enhanced single-channel isolated gate driver with +6 A / -8.5 A typical sourcing and sinking peak output current in a DSO-16 wide body package with 8 mm creepage for IGBTs, MOSFETs and SiC MOSFETs. 1ED3321 offers short-circuit protection (DESAT), implements separate source / sink outputs, operates over a wide supply voltage range, either unipolar or bipolar and has tight part-to-part propagation delay matching.

Infineon Technologies 1ED3321MC12N Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Isolation Type

Galvanic isolation - Reinforced

Output Current (Sink)

8.5 A

Output Current (Source)

6 A

Package

PG-DSO-16

PDout

810 mW

Product Name

1ED3321MC12N

Qualification

Industrial

RDSON_H(max)

1.3 Ω

RDSON_H(typ)

0.79 Ω

RDSON_L (max)

0.85 Ω

RDSON_L(typ)

0.51 Ω

RthJA

71.4 K/W

Turn Off Propagation Delay

85 ns

Turn On Propagation Delay

85 ns

VBS UVLO (Off)

11 V

VBS UVLO (On)

12 V

Voltage Class

2300 V

Apps

EV charging, Industrial motor drives and controls, General purpose motor drive, Servo motor drive and control, Photovoltaic, 1-phase string inverter solutions, Residential air conditioning

Features

  • Single channel isolated gate driver
  • For up to 2300 V Si & SiC switches
  • Galv. isolated coreless transformer
  • +6A/-8.5A typ sink/source peak out.
  • Precise VCEsat detection (DESAT)
  • Soft turn-off
  • 40 V absolute max. output voltage
  • 85 ns propagation delay
  • High CMTI >300 kV/μs
  • Separate source and sink outputs
  • Short-circuit clamping
  • Active Miller Clamp
