1ED3122MC12H

Active and preferred

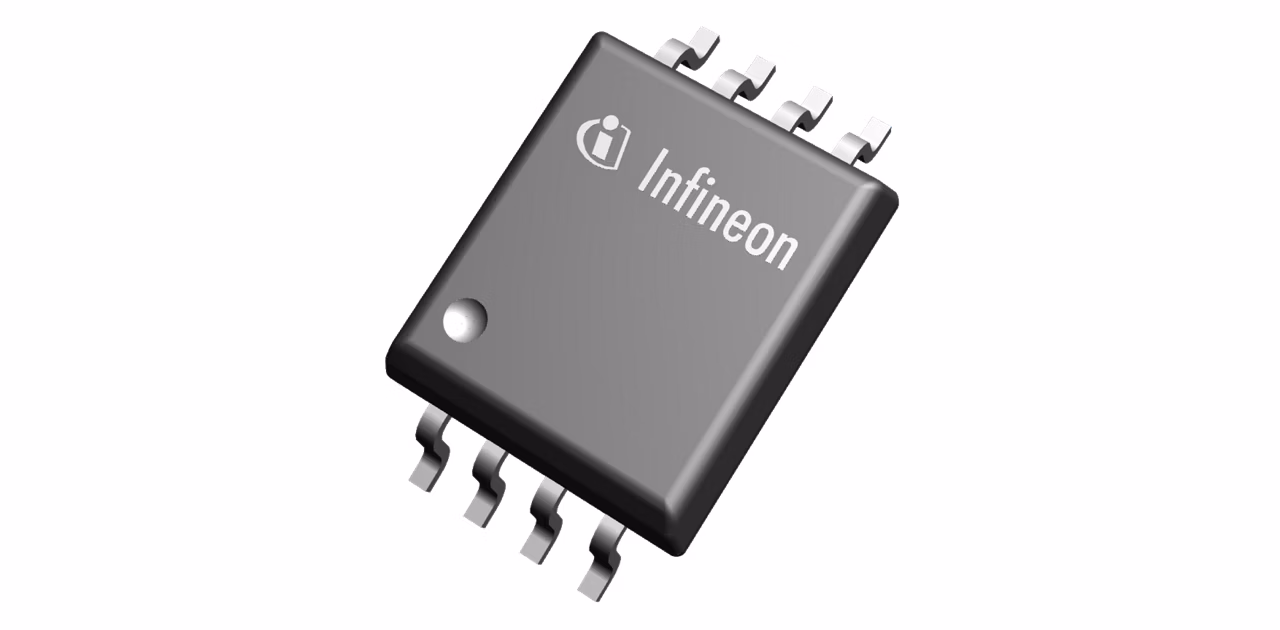

EiceDRIVER™ Compact single-channel isolated gate driver with 10 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It offers separate sink and source output, accurate and stable timing, active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power, short-circuit clamping to limit the gate voltage during short circuit

Infineon Technologies 1ED3122MC12H Product Info

16 April 2026 1

Parameters

Channels	1
Configuration	High-side
Input Vcc range	3.1 V to 17 V
Isolation Type	Galvanic isolation - Reinforced
Output Current (Source)	10 A
Output Current (Sink)	9 A
Package	PG-DSO-8
PDout	700 mW
Product Name	1ED3122MC12H
Qualification	Industrial
RDSON_H(max)	0.85 Ω
RDSON_H(typ)	0.55 Ω
RDSON_L (max)	0.65 Ω
RDSON_L(typ)	0.45 Ω
RthJA	88 K/W
Turn Off Propagation Delay	90 ns
Turn On Propagation Delay	90 ns
VBS UVLO (Off)	8 V
VBS UVLO (On)	10 V
VCC UVLO (On)	3.1 V
VCC UVLO (Off)	2.5 V
Voltage Class	2300 V

Apps

Server power supply units (PSU), Telecommunications infrastructure, EV charging, General purpose motor drive, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

Single channel isolated gate driver
For up to 2300 V Si & SiC switches
2300 V funct. offset volt. capable
Galv. isolated coreless transformer
10 A typ sink & source peak output
40 V absolute max. output voltage
90 ns propagation delay
High CMTI >200 kV/μs
Active Miller Clamp
Short-circuit clamping
DSO-8 300 mil wide-body package
UVLO protection with hysteresis
