TMCM-3351

PRODUCTION

3-axis stepper motor controller/driver module 11to 28V, 3A, 256 µSteps, with USB, CAN and RS485, RS232 Interface, StallGuard, CoolStep and StealthChop

Analog Devices TMCM-3351 Product Info

10 February 2026 7

Features

3-axes controller/driver for 2-phase bipolar stepper motor
Linear and S-shaped ramps and closed-loop operation with external encoder

+11 to 28V DC supply voltage
Up to 3A RMS motor current
RS485, CAN, RS232 & USB interfaces
Multi-purpose inputs and outputs

Part details & applications

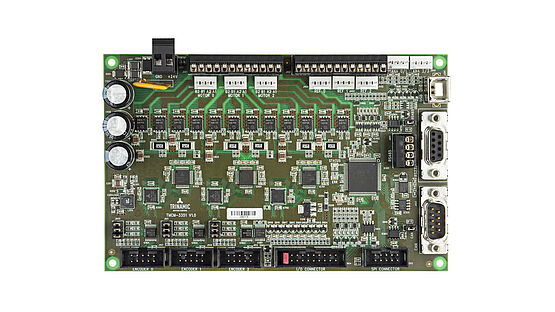

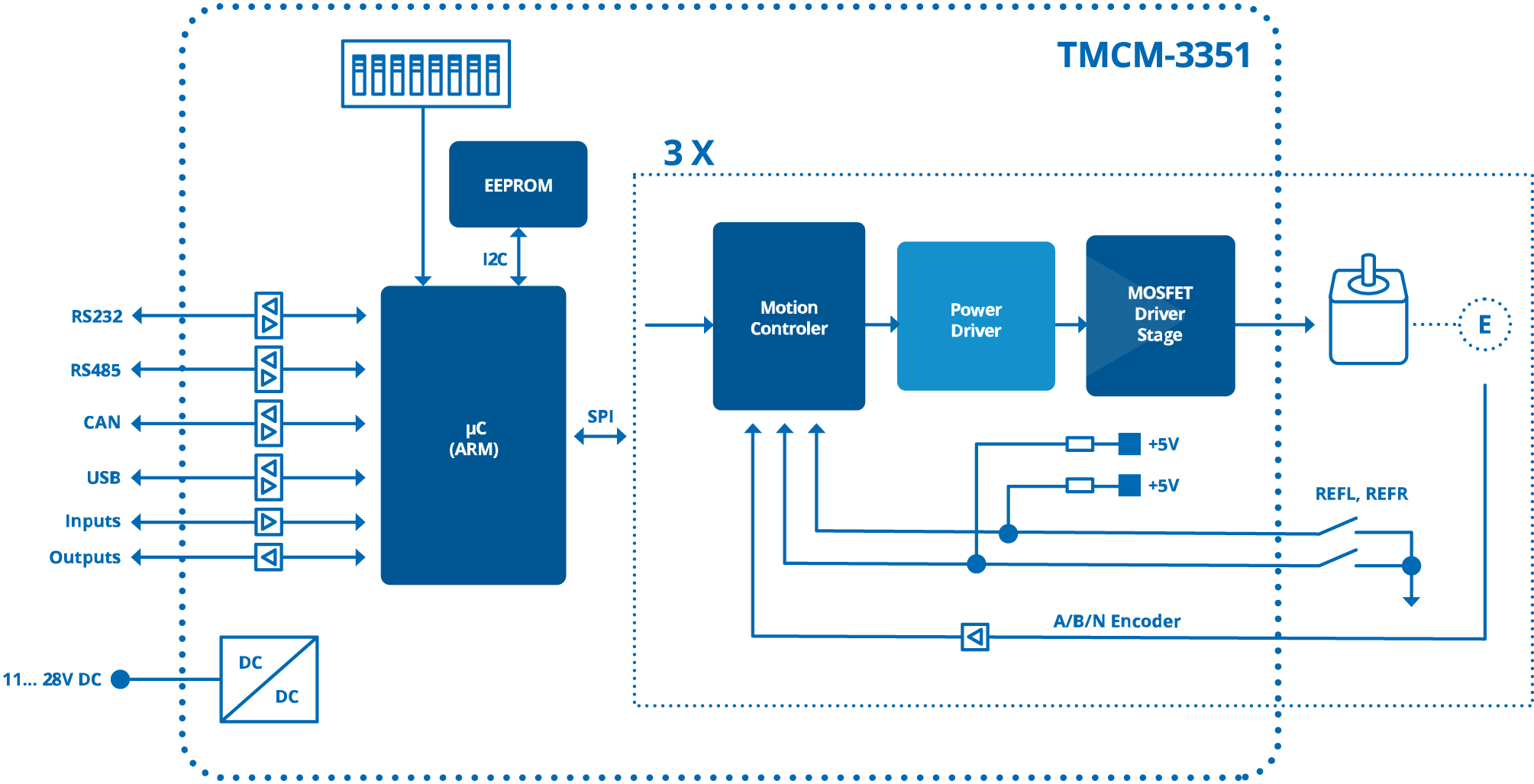

TMCM-3351 is a three axes motor controller/driver board for 2-phase bipolar stepper motors. It is the direct successor of TMCM-351 - mechanically and electrically compatible - with our latest generation of stepper driver and motion controller ICs supporting linear and S-shaped ramps and closed-loop operation with external ABN-encoders.

APPLICATIONS

Laboratory Automation
Manufacturing
Semiconductor Handling
Robotics
Factory Automation
Test & Measurement
Life Science
Biotechnology
Liquid Handling
