Analog Devices ADG5207 Product Info

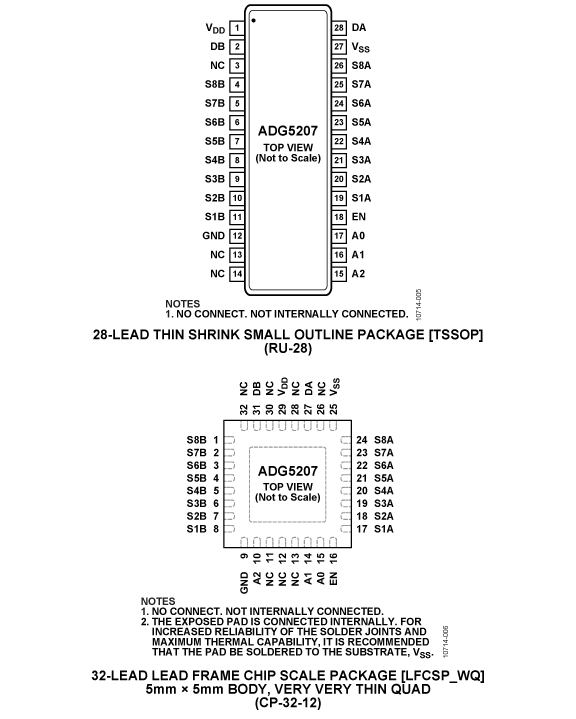

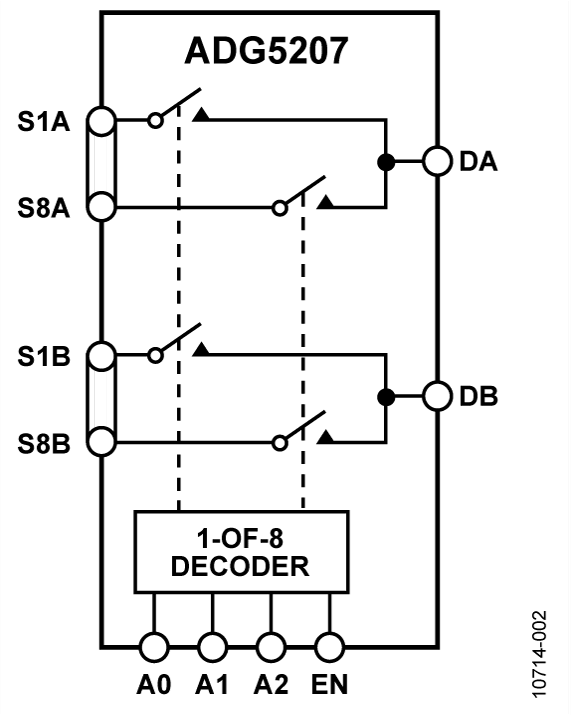

The ADG5207 is a monolithic CMOS analog multiplexer comprising eight differential channels. The ADG5207 switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines, A0, A1, and A2.

An EN input enables or disables the device. When EN is low, the device is disabled, and all channels switch off. The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make these devices suitable for video signal switching.

Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked.

The ADG5207 does not have a V_L pin; instead, the logic power supply is generated internally by an on-chip voltage generator.

APPLICATIONS

• Automatic test equipment
• Data acquisition
• Instrumentation
• Avionics
• Battery Monitoring
• Communication systems

PRODUCT HIGHLIGHTS

1. Trench Isolation Guards Against Latch-Up. A dielectric trench separates the P and N channel transistors to prevent latch-up even under severe overvoltage conditions.
2. Optimal switch design for low charge injection, low switch capacitance and low leakage currents
3. the ADG5207 achieves 8 kV on the I/O port to supply pins, 2 kV on the I/O port to I/O port pins, and 8 kV on all other pins.
4. Dual-Supply Operation. For applications where the analog signal is bipolar, the ADG5207 can be operated from dual supplies of up to ±22 V.
5. Single-Supply Operation. For applications
