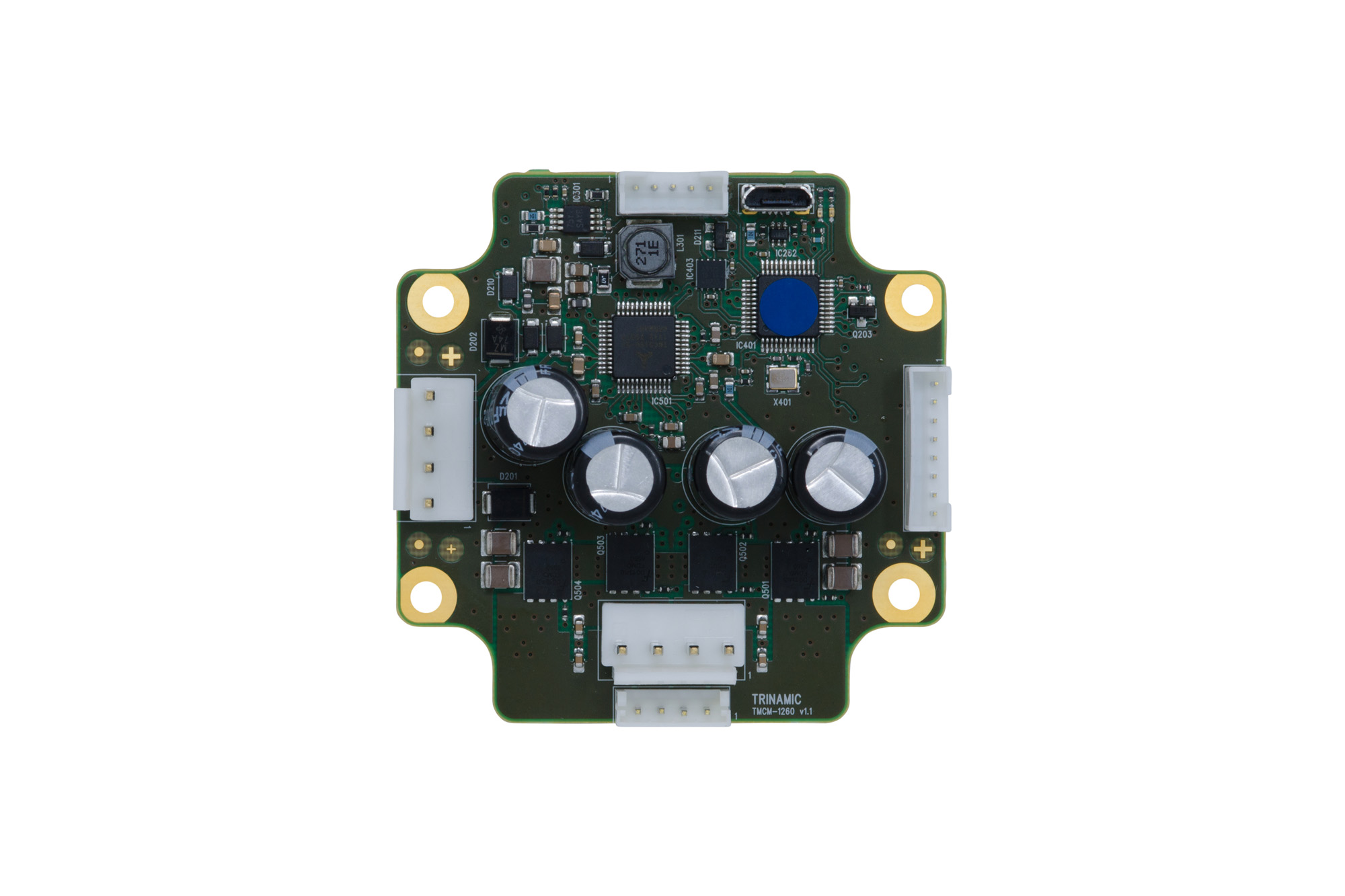

TMCM-1260

RECOMMENDED FOR NEW DESIGNS

Motor mountable stepper motor controller/driver module 12 to 54V, 6A, 256 µSteps, SixPoint ramp controller with USB, S/D, CAN and RS485 Interface, StallGuard, CoolStep, StealthChop

Analog Devices TMCM-1260 Product Info

10 February 2026 5

Features

Single axis controller/driver for 2-phase bipolar stepper motor
Linear and sixPoint^™ ramps
+24V and +48V DC supply voltage
Up to 6A RMS motor current

RS485, CAN & USB interface
Integrated sensOstep^™ encoder and support for external encoder
S/D interface
Multi-purpose inputs and outputs

Part details & applications

The TMCM-1260 is a single axis motor controller/driver board for 2-phase bipolar stepper motors with up-to 6A RMS motor current and 48V DC supply. It supports SixPoint^™ ramps in addition to linear ramps.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

APPLICATIONS

Laboratory Automation
Manufacturing
Semiconductor Handling
Robotics
Factory Automation
Test & Measurement
Life Science
Biotechnology
Liquid Handling
