• Synchronous serial bus protocols supported, example, SSI, SPI, BiSS C, EnDat 2.x
• Asynchronous serial bus protocols supported, example, Nikon A-format^® to the SPI
• Support for incremental A/B/Z encoder interface
• High speed 25MHz SPI system interface for configuration, control, and position
• High speed 2x UART 16Mbit/s system interface for configuration, control, and position
• Crystal oscillator or external clock with PLL
• Up to 128MHz internal system clock
• 2.5V to 5V single supply
• -40°C to +125°C operating temperature range

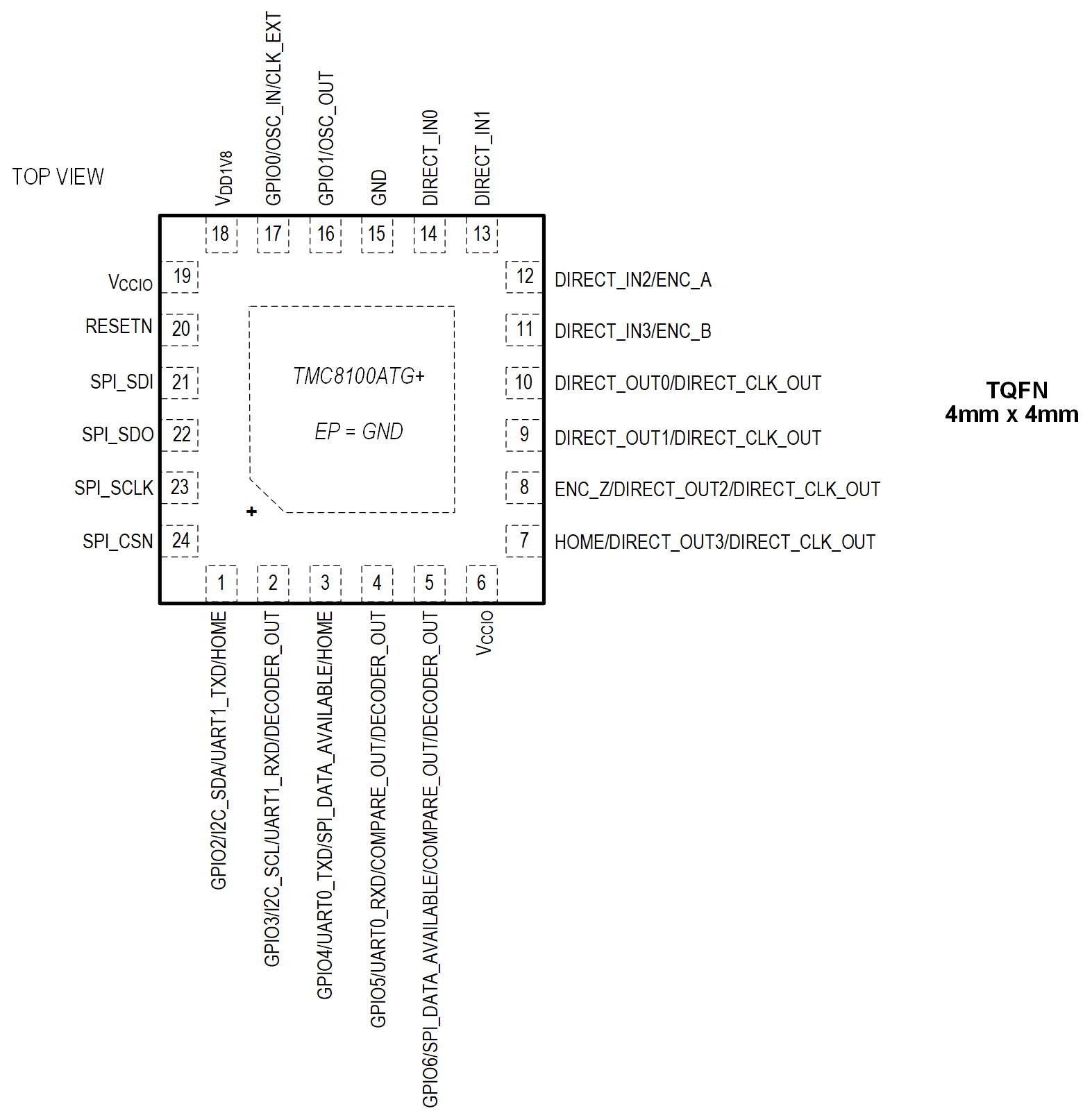

• TQFN24, 4mm x 4mm

The TMC8100 is a dedicated serial protocol converter IC, especially for absolute encoder bus protocols. It operates as a bus controller for these protocols and as a peripheral with either a serial peripheral interface (SPI) or universal asynchronous receiver-transmitter (UART) interface connection attached microcontroller/motion controller delivering the extracted and adjusted encoder position information.

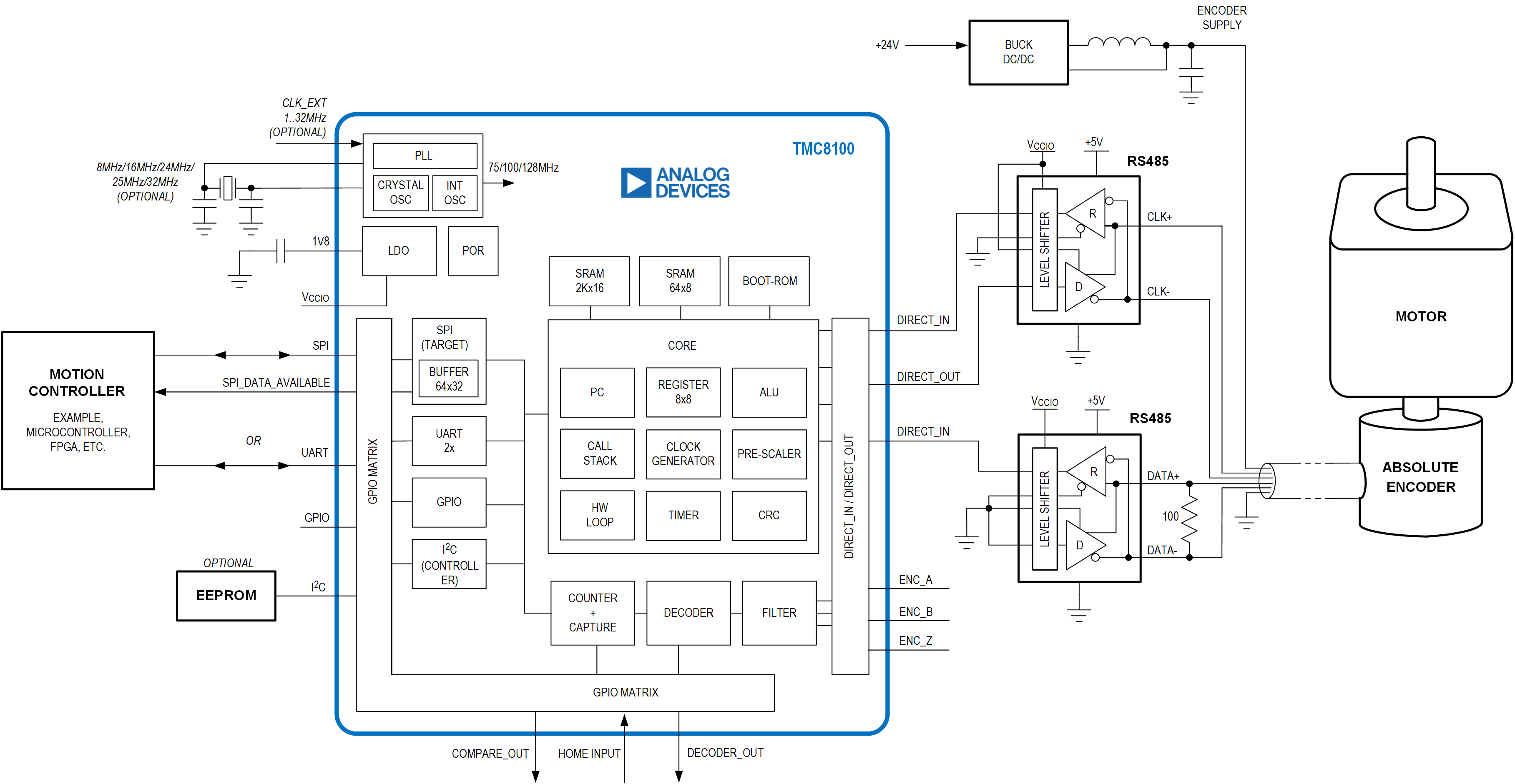

It integrates a programmable high performance serial communication engine for synchronous and asynchronous data up-to 16Mb/s. In addition to a clock generator, several counter/timer units, a programmable CRC generator and direct I/Os for connecting bus transceivers, standard SPI, 2x UART, and I²C interfaces are available.

Applications

• Industrial Manufacturing
• Robots/CoBots
• Automated Guided Vehicle (AGV)
