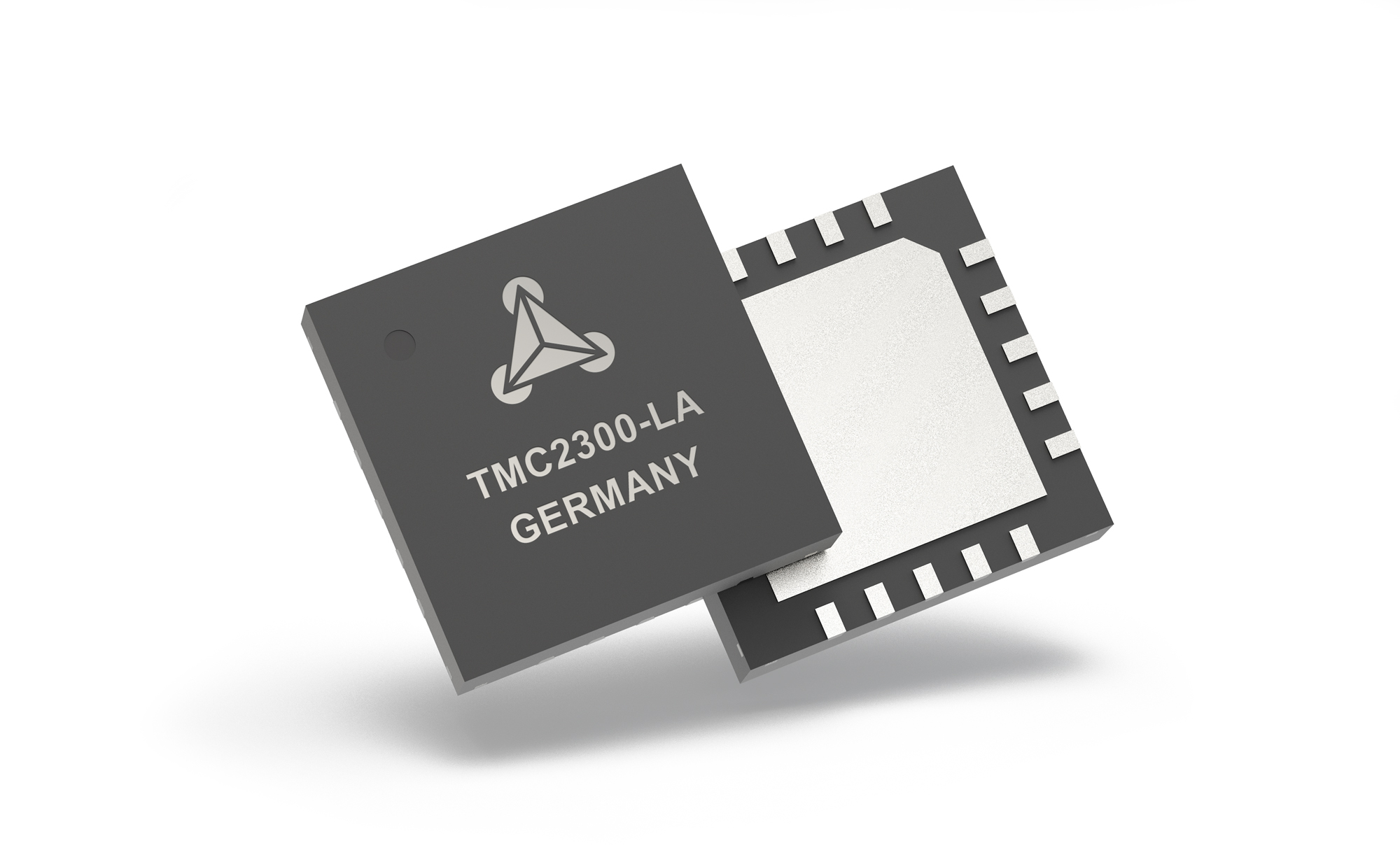

TMC2300

RECOMMENDED FOR NEW DESIGNS

Low voltage silent stepper motor driver 2…11V, up to 1.2A with zero standby current 256 µSteps, CoolStep, StallGuard2 and StealthChop

Analog Devices TMC2300 Product Info

10 February 2026 6

Features

Voltage Range 2V (1.8V) to 11V DC
Battery Operation 1-2 Li-Ion cells, or min. 2 AA / NiMh cells
2-phase Stepper Motors up to 1.2A RMS, 2A peak
Standby <50nA typ. current draw
STEP/DIR Interface up to 256 microsteps for stepper motor
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
Low RDSon LS 170mΩ & HS 170mΩ (typ.)

Low RDSon LS 170mΩ & HS 170mΩ (typ.)
No Sense Resistors Option using feed-forward regulation
Automatic Standby current reduction
Stall Detection StallGuard4 in StealthChop mode
CoolStep load dependent energy saving up to 90%
Single Wire UART for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics
Tiny of QFN 3*3 with 20 pins

Part details & applications

The TMC2300 low voltage stepper motor driver is intended for battery-operated, space and standby-power critical driver applications. Its silent drive technology StealthChop™ enables non-bugging motion control for portable, home and office applications. A highly efficient power stage, boosted by an internal charge pump for best in-class RDSon resistance, provides high motor current from a tiny package even at low supply voltages. With this, dual AA batteries can be drained down to typically 2.0V (voltage must not drop below 1.8V, provide sufficient supply buffer capacitors).

APPLICATIONS

IOT & Handheld devices
Battery operated equipment
Printers, POS
Miniature 3D Printers
Toys
Office and home automation
CCTV, Security
HVAC
Mobile medical devices
