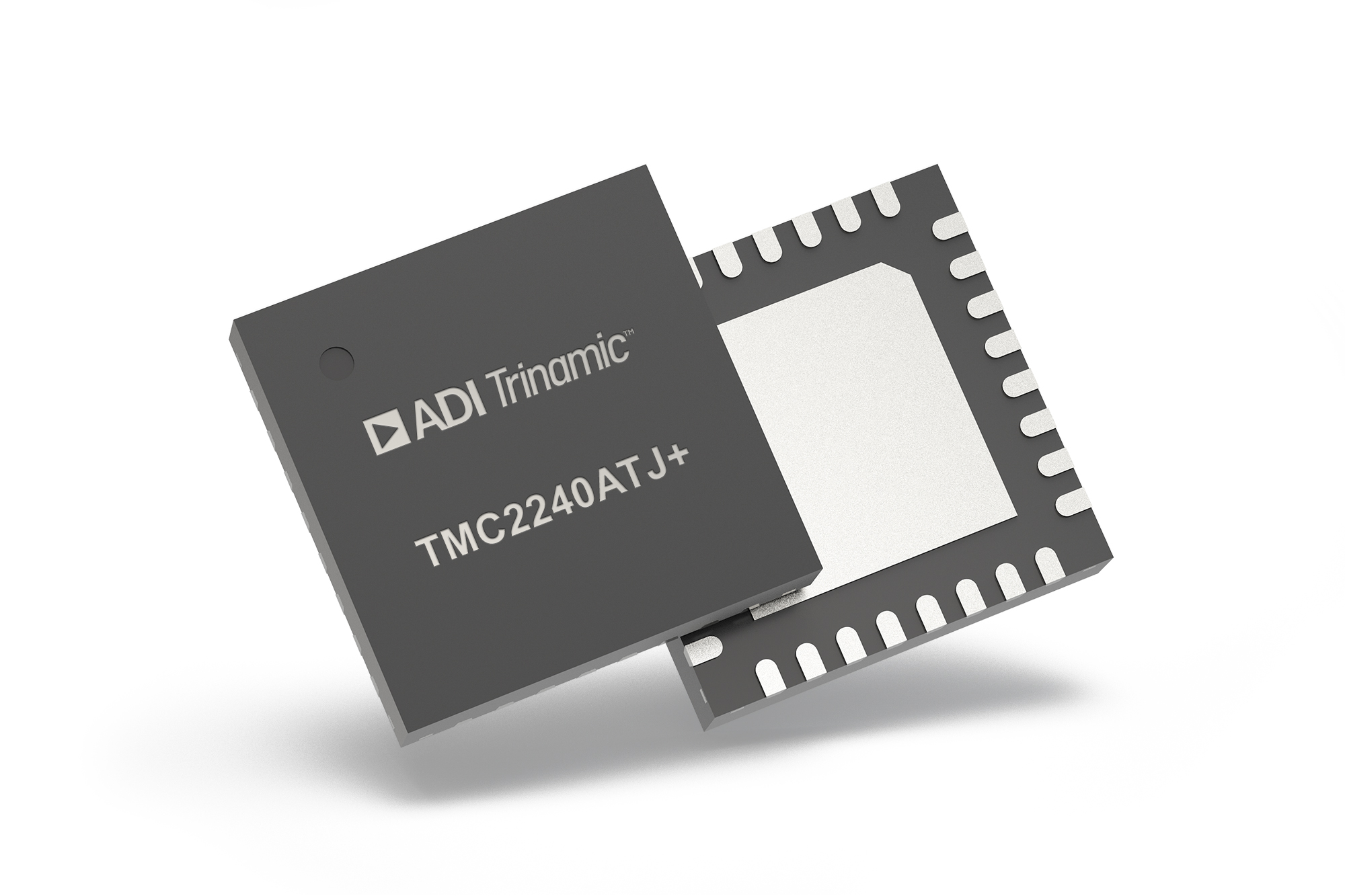

TMC2240

RECOMMENDED FOR NEW DESIGNS

36V 2ARMS+ Smart Integrated Stepper Driver with S/D and SPI

Analog Devices TMC2240 Product Info

10 February 2026 7

Features

Voltage Range 4.5V to 36V DC
Low R_DS(ON) (HS + LS): 230mΩ Typical (T_A = 25°C)
Current Ratings per H-Bridge (Typical at 25°C):
- I_MAX = 5.0A (Bridge Peak Current)
- I_RMS = 2.1A_RMS (3A Sine Wave Peak)
Fully Integrated Lossless Current Sensing
Step/Direction (S/D) Interface with MicroPlyer™ Step Interpolation
SPI and Single Wire UART
Incremental Encoder Interface
Highest Resolution 256 Microsteps per Full Step
Flexible Wave Table and Phase Shift to Match Motor
StealthChop2™ Silent Motor Operation

SpreadCycle™ Highly Dynamic Motor Control Chopper
Jerk-Free Combination of StealthChop2™ and SpreadCycle™
StallGuard2™ and StallGuard4™ Sensorless Motor Load Detection
CoolStep™ Current Control for Energy Savings up to 75%
Passive Braking and Freewheeling Mode
Motor Phase and Chip Temperature Measurement
General-Purpose Analog Input
Full Protection and Diagnostics
Overvoltage Protection Output

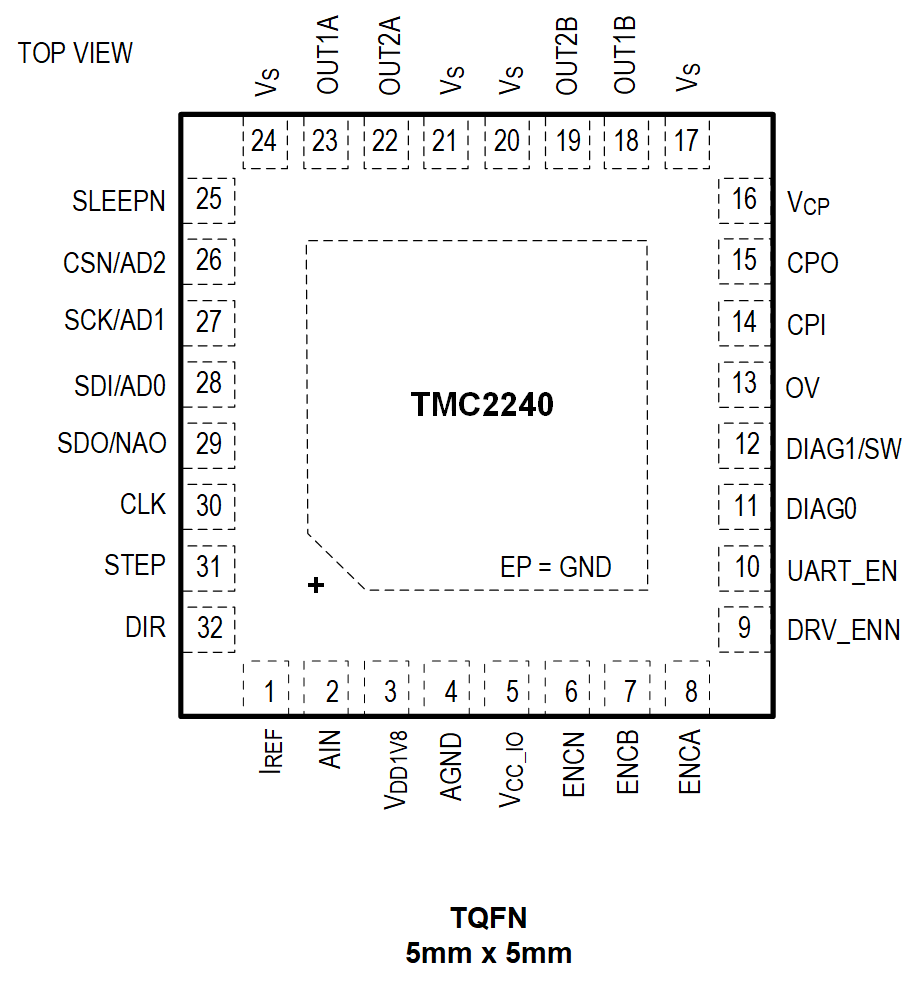

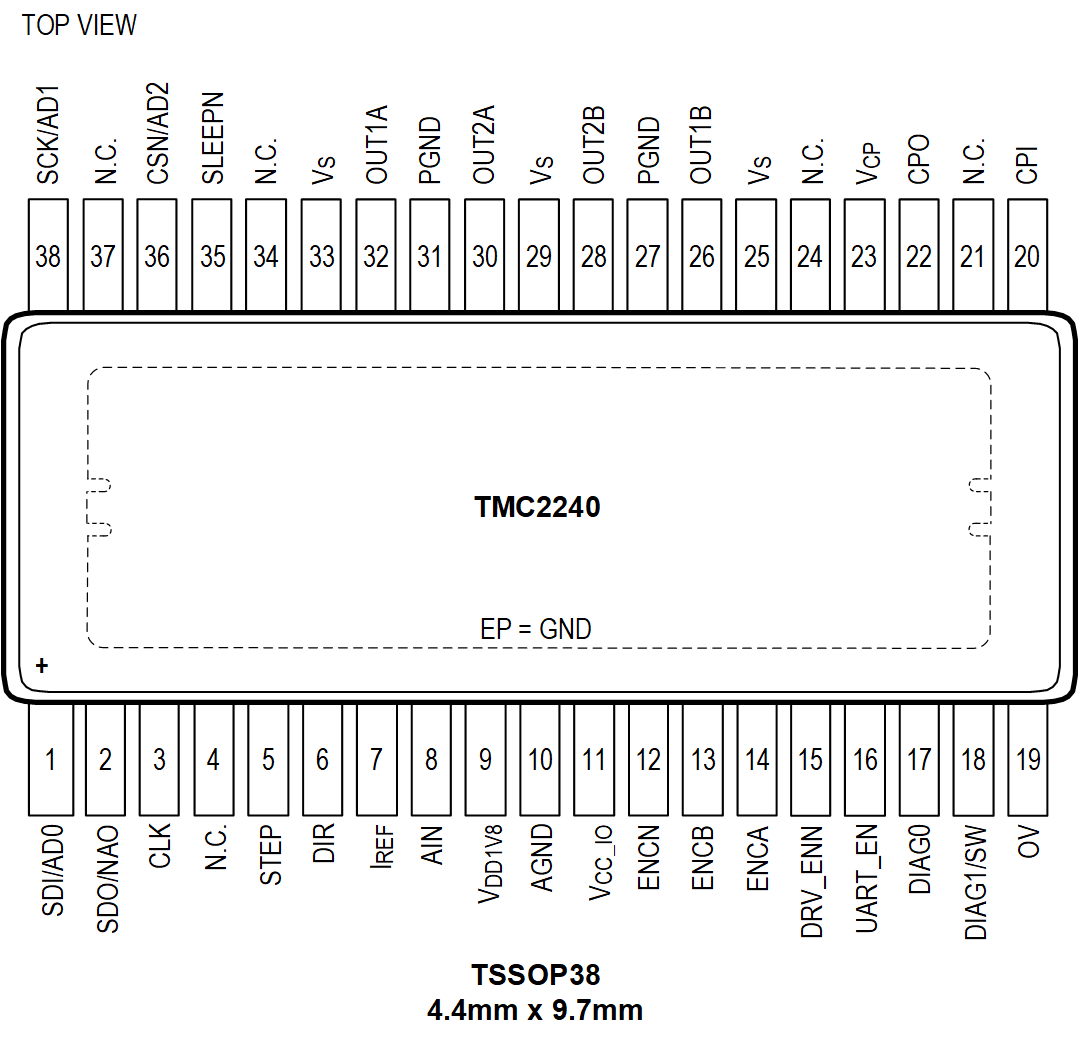

Compact 5mm x 5mm TQFN32 package or 9.7mm × 4.4mm TSSOP38

Part details & applications

The TMC2240 is a smart high-performance stepper motor driver IC with serial communication interfaces (SPI, UART) and extensive diagnosis capabilities. It combines industries’ most advanced stepper motor driver based on the 256-usteps built-in indexer and two fully integrated 36V, 3.0A (max) H-Bridges plus non-dissipative Integrated Current Sensing (ICS).

TMC2240 features abundant diagnostics and protections such as short protection / OCP, thermal shutdown, under voltage lockout. During thermal shutdown and under voltage lockout events the driver is disabled. Furthermore, TMC2240 provides functions to measure the driver temperature, estimate the motor temperature, and measure one external analog input.

Applications

Textile, Sewing Machines, Knitting Machines
Lab and Factory Automation
3D Printers, ID Printers/Card Printers
Liquid Handling, Medical Applications
Office Automation and Paper Handling
POS, Massage Chairs
ATM, Cash Recycler, Bill Validators, Cash Machines
CCTV, Security
Pumps and Valve Control
Heliostat and Antenna Positioning
