Analog Devices Inc.
0
PRODUCTION
Radiation Performance
All product configurations can be found in the MSK product table in the Product Details tab

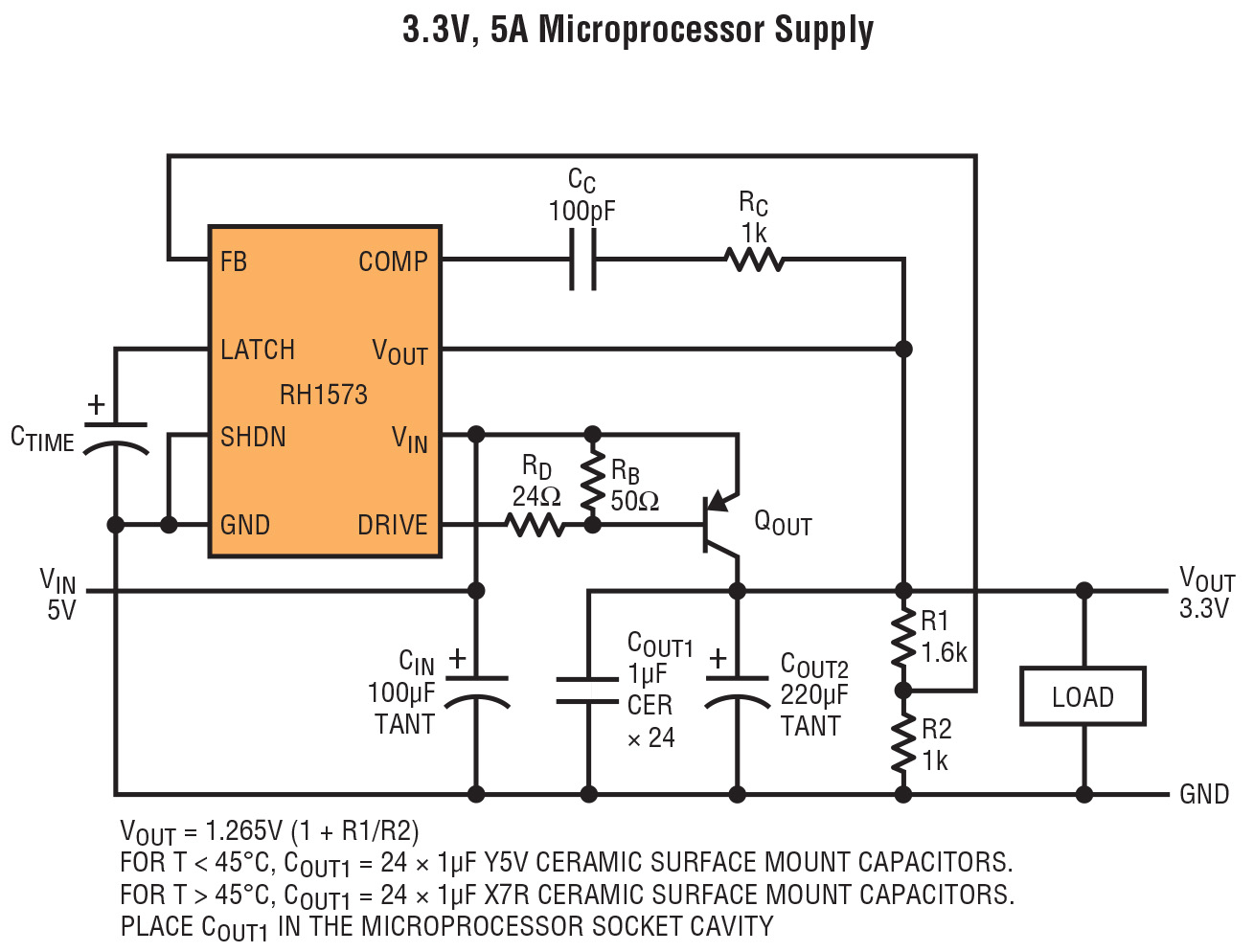

The RH1573 is a regulator driver IC designed to provide a solution for applications requiring high current, low dropout and fast transient response. When driving an external PNP power transistor, this device provides load current up to 5A with a dropout voltage as low as 0.35V. The RH1573 circuitry is designed for extremely fast transient response. This greatly reduces the output capacitance requirements when the regulator is used in applications with fast, high current load transients. The RH1573 uses a time-delayed latching overcurrent protection technique that requires no external sense resistor. Base drive is limited for instantaneous protection, and a time-delayed latch protects the regulator from continuous short circuits.
Third Party Vendor Availability
Analog Devices partners with third party vendors who assemble and test packaged products with RH Dice inside.
For MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.
